| MOQ: | 100 pcs |
| Price: | Negotiable |
| Standard Packaging: | on pallet or wooden case, or as customer's requirement |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 pcs or rolls per day |

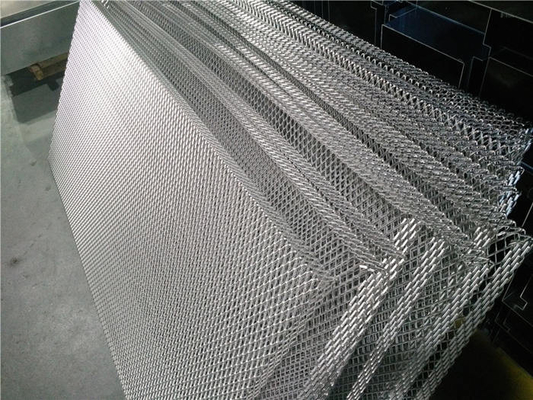

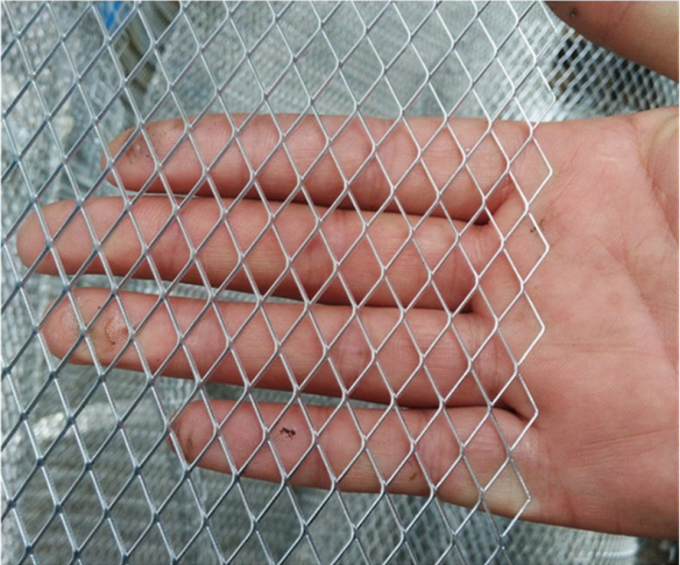

Steel plate mesh refers to: sheet metal through a special mechanical (steel mesh punching and shearing machine) after processing, the mesh condition for forming a material object.
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
1.Continuity--the mesh is formed from a single piece of metal
2.Environment friendly--no wasteful of material
3.High strength--higher strength to weight ration then metal sheet
4.Adherence--anti slip surface
5.Very good noise and fluid filtration--excludes & retains simultaneously
6.Good rigidity--premium reinforcement properties
7.Good conductivity--highly efficient conductor
8.Screening--practical and effective light filtration
9.Good resistance to corrosion
|
|
