| MOQ: | 100 pcs |
| Price: | Negotiable |
| Standard Packaging: | on pallet or wooden case, or as customer's requirement |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 pcs or rolls per day |

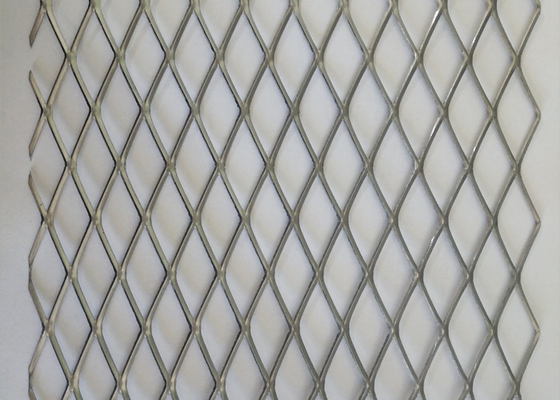

It is the most commonly used metal mesh in the market. As its name implies, its original metal sheet is processed by special machinery (expanded mesh punching and shearing machine) and then formed into a meshed sheet. Its great advantage is maximizing the use of raw materials and saving a large amount of material cost.
Low-Carbon Steel, Stainless Steel, Aluminum, Brass , Copper, Nickel, Aluminum-Magnesium Alloy, Titanium, etc
| Thickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
Expanded Metal Wire Mesh Process Flow
|
|
