| MOQ: | 50 sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

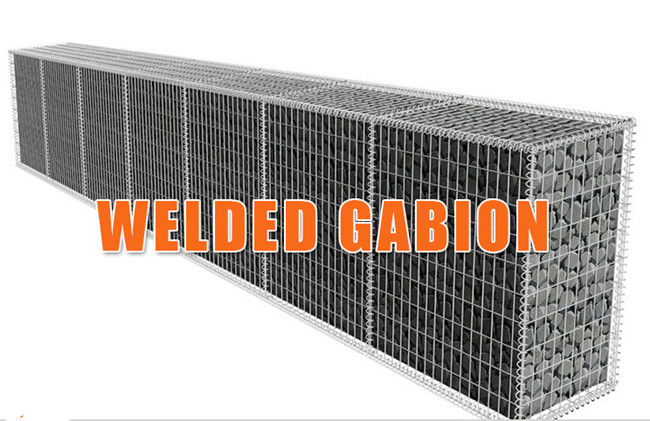

Welded Gabion is made of welded wire mesh panel, it is assembled with a spiral-shaped wire to assemble the front and rear panels, the bottom plate and the partition after welding, and is packed together with the mesh cover. All the caged products that are folded and tied are an independent individual.
Field installation is quick and easy. With diaphrams and stiffeners installed, the gabion may be filled with standard loading equipment. After filling the gabion, a lid is placed on top and secured with spiral binders, lacing wire or "C" rings. Welded Wire Gabions hold their shape better - they don't bulge out when filled. They are easy to handle, which means more work, less labor and higher productivity on the job.
1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection
| Specification Of Welded Gabion Mesh | |||
| Gabion size(m) | Mesh opening | Wire diameter | Surface treatment |
| 1×1×1 | 50 x 50mm 75 x 75mm 80 x 80mm 100 x 100mm |
3-6mm | Galvanized Galfan PVC coated |
| 2×1×1 | |||
| 3×1×1 | |||
| 0.5×0.5×0.5 | |||
| 1×0.5×0.5 | |||
| 1×1×0.5 | |||
| 2×1×0.5 | |||
| 2×1×1 | |||
| 3×1×1 | |||
| Generally, stiffener length 300mm, spiral binder wire diameter 2-4mm | |||
| All sizes can customized according to your request. | |||

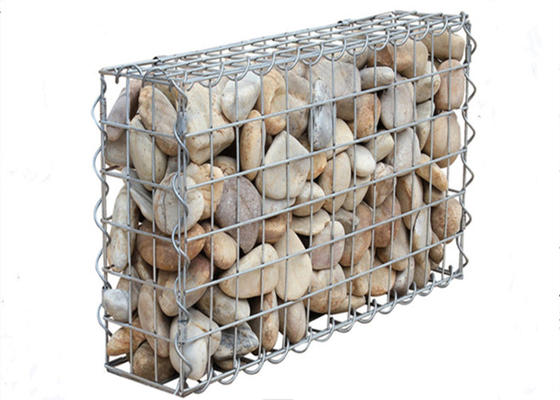

Welded Gabion Mesh For gardens:
If you decorate your garden with welded gabions,your garden will be amazing.
Garden gabion can be incorporated into the design of a garden anywhere there is a readily available supply of local rock. The visual appearance will be determined by the type of rocks selected or available. For example, some rocks can create an almost schist-like effect. They can be used in small courtyards as well as large estates or large-scale commercial projects.The maximum rock sizes you can use will depend on the size and form of the baskets you select.
|
|
