| MOQ: | 50sets |
| Price: | negotiable |

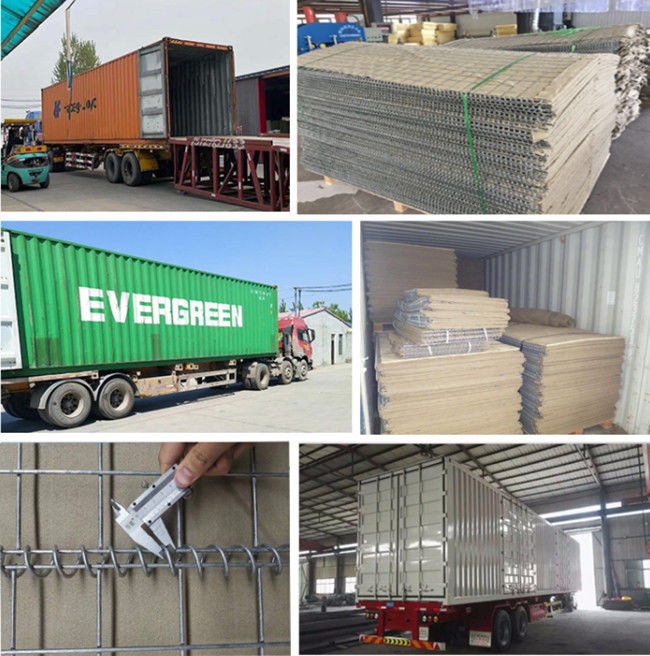

| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

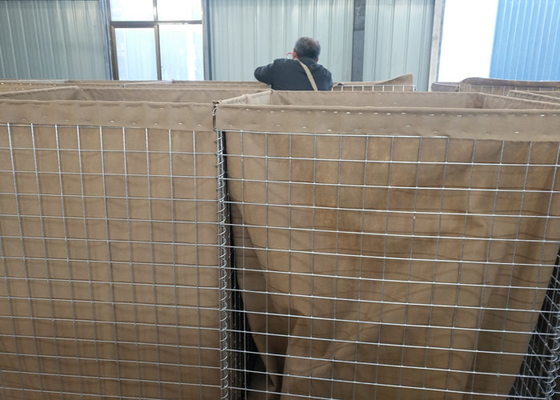

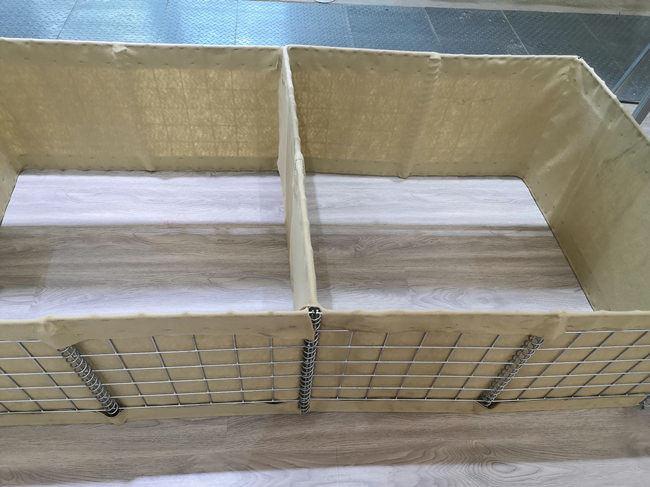

Military Defensive Barrier, as its name indicated, at the beginning, it mainly used on Military, for army protection,military fortifications, Anti-Explosion Wall and etc.It is made of Collapsible Welded Gabion Mesh and UV Protection Heavy Geotextile, The common surface treatment is Hot Dipped Galvanized before welding, HDP Galvanized after welding, and Galfan Coated. Both of them have a long using life. It has seen considerable use in Iraq, Afghanistan and Africa.
Assembling the Hesco bastion entails unfolding it and fills it with sand, dirt or gravel.
The main advantage of Hesco barriers, strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup.
Previously, people had to fill sandbags, a slow undertaking, with one worker filling about 20 sandbags per hour.
Workers use Hesco barriers and a front end loader can do ten times the work of those using sandbags.
Hesco basket raw material specifications:
| Wire diameter | 3.85mm,4mm,5mm etc | |||
| Mesh Size | 75mmx75mm etc | |||
| Spring wire diameter | 3mm,4mm,5mm etc | |||
| Panel Finish | Hot dipped galvanized or Galfan coated | |||
| Geotextile | Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc | |||

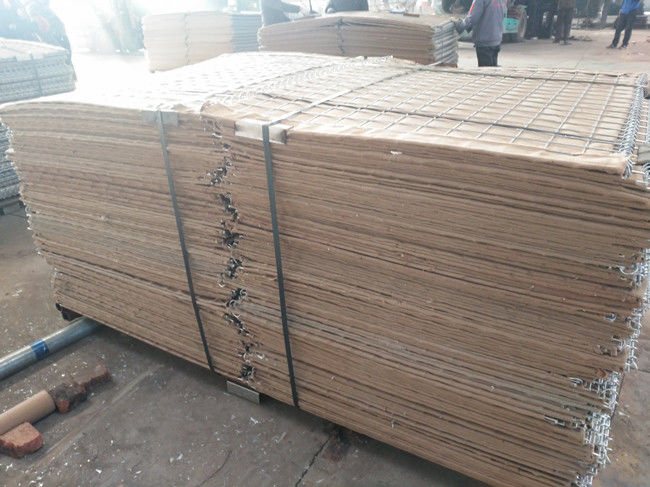

| Packing Wrapped with shrink film or packed in pallet | ||||
| Technical Specification for Geotextile Fabric | ||||
| Color | Beige sand,Olive green,Grey | |||
| Mass(g/sqm) | 250,300,350 | |||
| Tensile strength | 16kN | |||
| Tear Strength | 0.42kN | |||
| CBR Puncture | 3.1kN | |||
UV strength retention ASTM D4355 | 50% at 500hours (5 years use life in common environment) | |||
| 70% at 500hours (10 years use life in common environment) | ||||
PRODUCR ITEM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
HB MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) | 5+4=9 cells |
HB MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) | 2 cells |
HB MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) | 5+5=10 cells |
HB MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) | 5×2+5×2=20 cells |
HB MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) | 5+4+4=13 cells |
HB MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) | 5+4=9 cells |
HB MIL9 | 39''(1.00M) | 30''(0.76M) | 30'(9.14M) | 6+6=12 cells |
HB MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(30.50M) | 5+5+5+5=20 cells |
HB MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) | 2 cells |
HB MIL12 | 84"(2.13M) | 42"(1.06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
HB MIL19 | 108''(2.74M) | 42"(1.06M) | 10'5'(3.18M) | 6 cells |
|
|
