| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

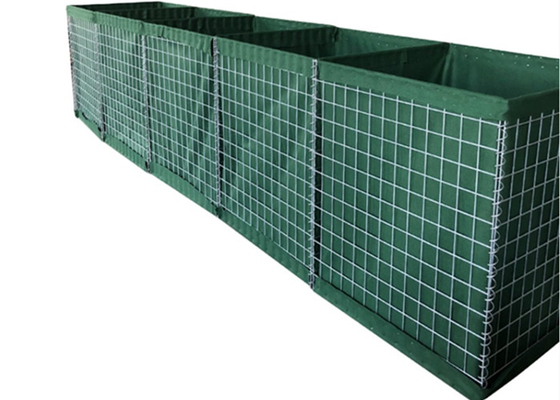

Explosion-proof walls are also known as modern metal meshes for flood protection and military fortifications..Composed of a collapsible wire mesh container,and heavy geotextile, it is used as a temporary or semi-permanent barrier or bastion to block an explosion or small weapon attack.
Hesco bastion raw material specifications:
| Wire diameter | 4mm,5mm etc | |||
| Mesh Size | 75mmx75mm, 3" x 3“ | |||
| Spring wire diameter | 3mm,4mm,5mm etc | |||
| Panel Finish | Hot dipped galvanized or Galfan coated | |||
| Geotextile | Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc | |||
| Packing Wrapped with shrink film or packed in pallet | ||||
| Technical Specification for Geotextile Fabric | ||||
| Color | Beige sand,Olive green,Grey | |||
| Mass(g/sqm) | 250,300(standard),350 | |||
| Tensile strength | 16kN | |||
| Tear Strength | 0.42kN | |||
| CBR Puncture | 3.1kN | |||
UV strength retention ASTM D4355 | 50% at 500hours (5 years use life in common environment) | |||
| 70% at 500hours (10 years use life in common environment) | ||||
PRODUCR ITEM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
HB MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) | 5+4=9 cells |
HB MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) | 2 cells |
HB MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) | 5+5=10 cells |
HB MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) | 5×2+5×2=20 cells |
HB MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) | 5+4+4=13 cells |
HB MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) | 5+4=9 cells |
HB MIL9 | 39''(1.00M) | 30''(0.76M) | 30'(9.14M) | 6+6=12 cells |
HB MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(30.50M) | 5+5+5+5=20 cells |
HB MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) | 2 cells |
HB MIL12 | 84"(2.13M) | 42"(1.06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
HB MIL19 | 108''(2.74M) | 42"(1.06M) | 10'5'(3.18M) | 6 cells |

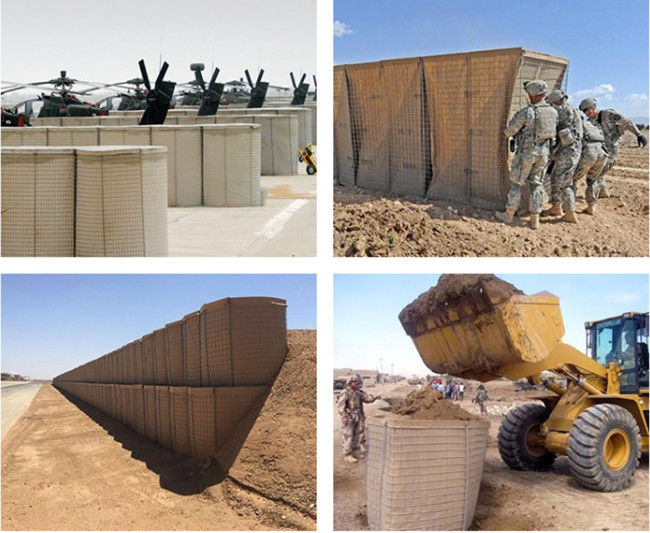

Military Defense
Equipment Revetment
Explosives and Contraband Search Areas
Guard Posts
Personnel and Material Bunkers
Shooting Range
|
|
