| MOQ: | 50 rolls |
| Price: | negotiable |
| Standard Packaging: | Waterproof paper or Shrink Wrapped , Carton |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10000 square meter per day |

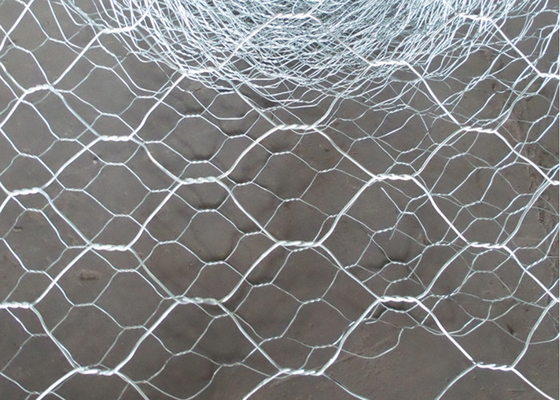

Hexagonal Chicken Wire Netting is made of high quality low carbon steel wire. Hexagonal Netting divides into hot dipped galvanized and electro galvanized and pvc coated .The products have smooth mesh surface ,well-proportioned meshes ,strong welded points and bright luster.Compared with general iron wire, the products are better in respects of anti-corrosive and anti rust.
| Specification of hexagonal wire mesh | ||||||
| Specifications | Wire Diameter | Width | ||||
| Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | BS | Metric |
| 3/8” | 10 | +0.5 | BWG27-23 | 0.40-0.6mm | 1”-6” | 0.1-2m |
| 1/2” | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1”-6” | 0.1-2m |
| 5/8” | 16 | +1.0/-2.0 | BWG27-22 | 0.4-0.7mm | 1”-6” | 0.1-2m |
| 3/4” | 20 | +1.0/-2.5 | BWG26-20 | 0.46-0.9mm | 1”-6” | 0.1-2m |
| 1” | 25 | +1.5 | BWG25-19 | 0.5-1.0mm | 1”-6” | 0.1-2m |
| 1-1/4” | 31 | -3.0 | BWG24-18 | 0.56-1.2mm | 1”-6” | 0.2-2m |
| 1-1/2” | 40 | +2.0/-4.0 | BWG23-16 | 0.6-1.65mm | 1”-6” | 0.2-2m |
| 2” | 51 | +2.0/-4.0 | BWG22-14 | 0.7-2.0mm | 1”-6” | 0.2-2m |
| 3” | 76 | +2.0/-4.0 | BWG21-14 | 0.8-2.0mm | 1”-6” | 0.3-2m |
| 4” | 100 | +2.0/-4.0 | BWG20-12 | 0.9-2.8mm | 1”-6” | 0.5-2m |
| Others we can do as your requirement | ||||||
| PVC Coated Hexagonal Wire mesh | |||
| Mesh | Wire Gauge (MM) | Width | |
| Inch | MM | - | - |
| 1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
| 3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
| 1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
| 1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
| 1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
| 2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
1) corrosion- resistant, rust-resistant.
2) oxidation –resistant, good tensile strength.
3) uniform mesh size, flat and even mesh surface, weave tightly.
4) galvanized /pvc coated for longer life, low costs
5) easy to handle and cut.
Reinforcement of plaster, screed;
Reinforcement surface for laying ceramic tiles;
Reinforcement plates facade insulation in heavy plaster systems (galvanized);
Production of gabions;
Mesh for chicken coop, enclosures for birds and animals;
For rabbits wire netting;
As garden fencing support for climbing plants;
Protection of trees, plants and crops;
Light fittings for sculptural works;
For protection against rockfall, strengthening the hillsides and riverbanks.
Packing & Transportation pictures:
|
|
