| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 sets per day |
Anti-climb fence is also known as high security fence and 358 security fence.

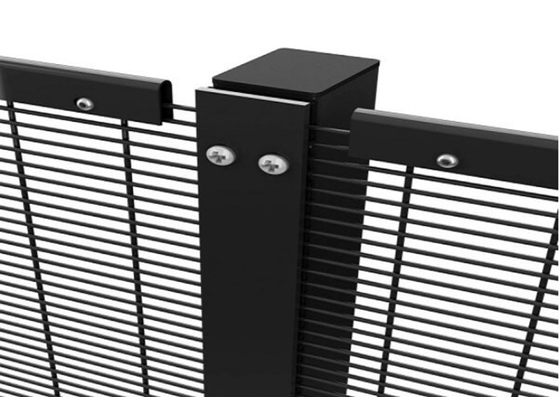

358 Anti-climb rigid mesh is a high-security and very strong rigid weld mesh used extensively in Europe, Australia and South Africa. The closeness of the horizontal wires in this anti-climb fence also makes for a mesh panel almost impossible to grip, thus climb, when used as part of a fencing system, and thus the name "Anti-climb".
358 Anti Climb Security Mesh Fence specification:
| Specification of 358 high security wire mesh prison fence | |||
| Panel Size (Height × Width) |
Fence Post (Height × Size × Thick ) |
Clamp Bar (Height × Width × Thick ) |
Inter or corner Clamp No (PCS) |
| 2007mm ×2515mm | 2700mm ×60×60×2.5mm | 2007mm×60mm ×5.00mm | 7 or 14 |
| 2400mm× 2515mm | 3100mm×60×60×2.5mm | 2400mm×60mm ×5.00mm | 9 or 18 |
| 2997mm×2515mm | 3800mm×80×80×2.5mm | 2997mm×80mm ×6.00mm | 11 or 22 |
| 3302mm ×2515mm | 4200mm×80×80×2.5mm | 3302mm×80mm ×6.00mm | 12 or 24 |
| 3607mm ×2515mm | 4500mm×100×60×3.0mm | 3607mm×100mm×7.00mm | 13 or 26 |
| 3607mm ×2515mm | 4500mm×100×100×3.0mm | 3607mm×100mm×7.00mm | 13 or 26 |
| 4204mm × 2515mm | 5200mm×100×100×4.0mm | 4204mm×100mm×8.00mm | 15 or 30 |
| 4496mm × 2515mm | 5500mm×100×100×5.0mm | 4496mm×100mm×8.00mm | 16 or 32 |
| 5207mm ×2515mm | 6200mm×120×120×5.0mm | 5207mm×100mm×8.00mm | 18 or 36 |
Bridge anti-climb guarding &guard safety screening;
Sub-station security fencing;
Psychiatric hospital security fencing;
Factory machine guards;
Walkway security fencing;
Airport security fencing;
358 wire mesh fence gates;
Shipping port security fencing;
Electrical sub-station fencing;
Water treatment works;
Gas security window grilles;
Balustrades security fence as well as some other commercial/industrial security fence uses.
|
|
