| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

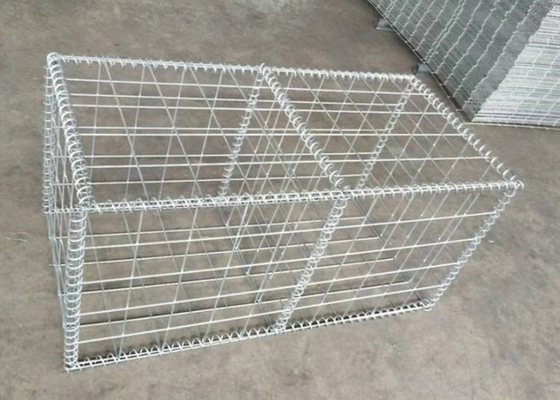

Welded gabion box is manufactured from steel wire for tensile strength. It is electrically welded together then hot dipped galvanized or PVC coating, ensuring a longer life and better corrosion and rust resistance performance. If you want cheaper price,we also welded directly hot dipped galvanized wire or Galfan wire. Gabion boxes are designed on the principle of mass earth retaining wall.
1. Economical. Just fill the stone into the gabions and seal it.
2. easy installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. No collapse even under big scope of deforming.
5. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6. Good permeation can prevent the damage by hydrostatic.
7. Less transportation freight. It can be folded together for transportation and further installation.
|
Common Specification of Welded Gabion Box
|
|||
|
Wire diameter:3.0-6.0mm
|
|||
|
Specification in meters
|
Mesh size(mm)
|
No. of diaphragms
|
Capacity cu.meters
|
|
1.0*1.0*0.5
|
50*50
75*75
50*100
100*100
|
0
|
0.50
|
|
1.0*1.0*1.0
|
0
|
1.00
|
|
|
1.5*1.0*0.5
|
0
|
0.75
|
|
|
1.5*1.0*1.0
|
0
|
1.50
|
|
|
2.0*1.0*0.5
|
1
|
1.00
|
|
|
2.0*1.0*1.0
|
1
|
2.00
|
|
|
3.0*1.0*0.5
|
2
|
1.50
|
|
|
3.0*1.0*1.0
|
2
|
3.00
|
|
|
4.0*1.0*0.5
|
3
|
2.00
|
|
|
4.0*1.0*1.0
|
3
|
4.00
|
|
|
Remark:We provide the attached specification,but it does not limited to them.It can be as client's instruction.
|
|||

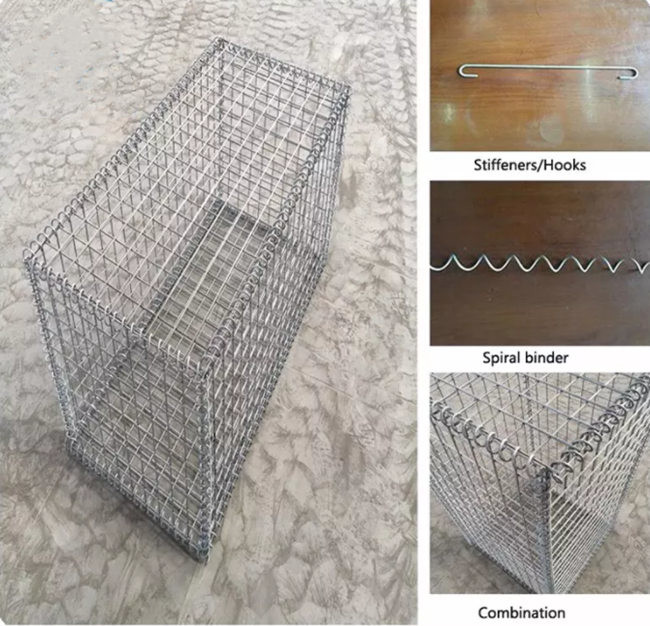

1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones

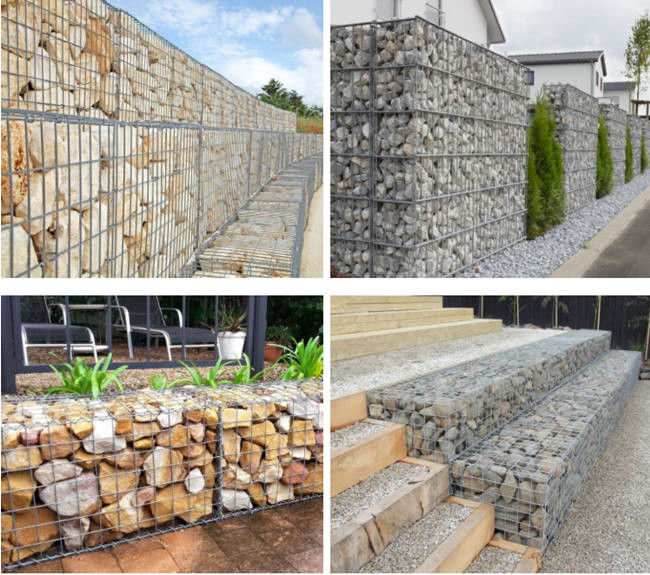

Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.
|
|
