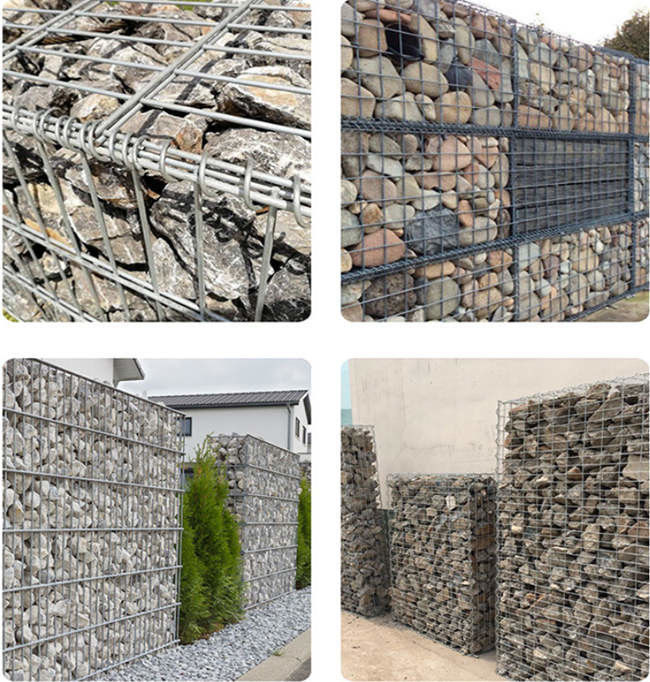

Welded Gabion is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener.
Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
Easy installation welded gabion box retaining wall metal gabions prices
Each gabion include 6pcs welded wire mesh panel, 12pcs spiral binders and 4pcs corner stiffeners
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >450Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >450Mpa.
(3) coated galvanized steel wire: low carbon steel wire, pvc coated.
Field installation is quick and easy. With diaphrams and stiffeners installed, the gabion may be filled with standard loading equipment. After filling the gabion, a lid is placed on top and secured with spiral binders, lacing wire or "C" rings. Welded Wire Gabions hold their shape better - they don't bulge out when filled. They are easy to handle, which means more work, less labor and higher productivity on the job.
1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroys corrosion resistant.
4.No collapse even under big scope of deforming.
5.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6.Good permeation can prevent the damage by hydrostatic.
7.Less transport freight. It can be folded together for transport and further installation.
|
Nominal Box sizes (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
| 1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 | 0.50 |
| 1.0x1.0x1.0 | 0 | 1.00 | |
| 1.5x1.0x0.5 | 0 | 0.75 | |
| 1.5x1.0x1.0 | 0 | 1.50 | |
| 2.0x1.0x0.5 | 1 | 1.00 | |
| 2.0x1.0x1.0 | 1 | 2.00 | |
| 3.0x1.0x0.5 | 2 | 1.50 | |
| 3.0x1.0x1.0 | 2 | 3.00 | |
| 4.0x1.0x0.5 | 3 | 2.00 | |
| 4.0x1.0x1.0 | 3 | 4.00 |
|
|
