| MOQ: | 50 rolls |
| Price: | negotiable |
| Standard Packaging: | Waterproof paper or Shrink Wrapped , Carton |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10000 square meter per day |
Poultry wire netting is also known by the name of hexagonal wire mesh / chicken mesh / rabbit mesh. Hexagonal wire mesh with it's good corrosion resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone
cage/gabion box, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing
industries.

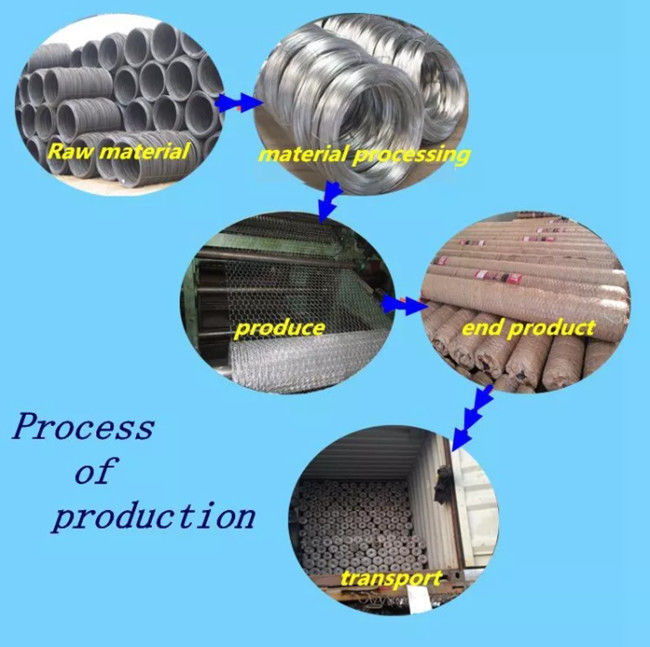

-raw material
-material processing
-weaving
-packing
-loading and transporting
| stainless steel /Galvanized hexagonal wire netting | |||||
| mesh | Min. Gal.v. | Width | Wire Gauge (Diameter) | ||
| Inch | mm | Tolerance(mm) | |||
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.
| PVC Coated Hexagonal Wire Netting | |||
| Mesh | Wire Gauge (MM) | Width | |
| Inch | MM | - | - |
| 1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
| 3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
| 1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
| 1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
| 1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
| 2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
| We also offer other specifications you need | |||
Hexagonal wire mesh is formed by twisting two adjacent wires at least four times, forming a strong honeycomb mesh structure. So, it has a high strength and durability. Even if a place is cut off, it will not lead to the entire chicken mesh structure destroyed. When using for plastering, plaster layer and the reinforcing metal layer have different thermal expansion coefficient.
Galvanized Hexagonal Wire Netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
Packing & Transportation pictures:
|
|
