| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |
|
Mesh wire diameter
|
3mm,4mm,5mm,6mm etc
|
|
Spring wire diameter
|
3mm,4mm,5mm,6mm etc
|
|
Mesh size
|
50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request.
|
|
Panel Size
|
0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request.
|
|
Finish
|
Electro galvanized after welded
Hot dipped galvanized welded Galfan coated after welded |
|
Geotextile
|
Heavy duty non-woven polypropylene
|
|
Packing
|
Wrapped with shrink film or packed in pallet
|

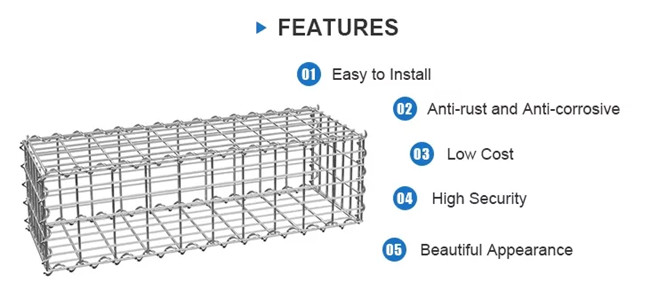

Easy to install
Anti-rust and Anti-corrosive
Low cost
High security
Beautiful appearance
|
Common Specification of Welded Gabion Box
|
|||
|
Wire diameter:3.0-6.0mm
|
|||
|
Specification in meters
|
Mesh size(mm)
|
No. of diaphragms
|
Capacity cu.meters
|
|
1.0*1.0*0.5
|
50*50
75*75
50*100
100*100
|
0
|
0.50
|
|
1.0*1.0*1.0
|
0
|
1.00
|
|
|
1.5*1.0*0.5
|
0
|
0.75
|
|
|
1.5*1.0*1.0
|
0
|
1.50
|
|
|
2.0*1.0*0.5
|
1
|
1.00
|
|
|
2.0*1.0*1.0
|
1
|
2.00
|
|
|
3.0*1.0*0.5
|
2
|
1.50
|
|
|
3.0*1.0*1.0
|
2
|
3.00
|
|
|
4.0*1.0*0.5
|
3
|
2.00
|
|
|
4.0*1.0*1.0
|
3
|
4.00
|
|
|
Remark:We provide the attached specification,but it does not limited to them.It can be as client's instruction.
|
|||
1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones

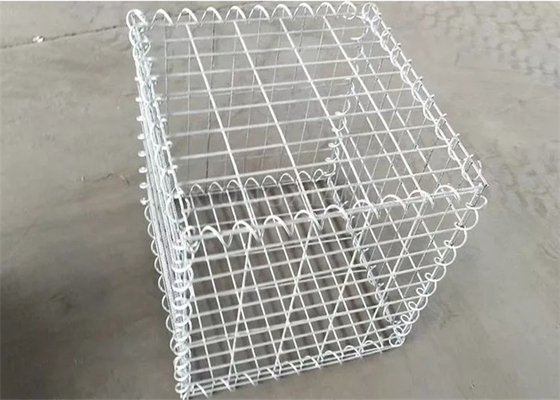

Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.
|
|
