| MOQ: | 50sets |
| Price: | negotiable |

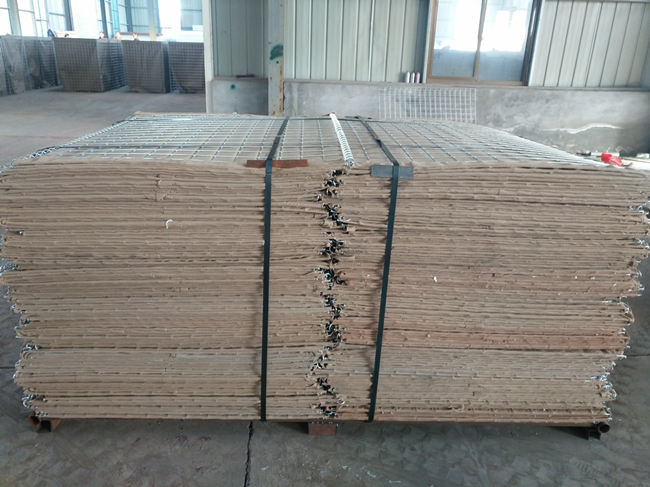

| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

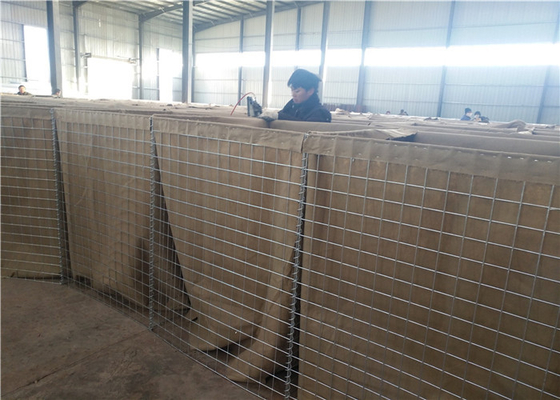

Hesco bastion, military barrier, welded gabion wall , also referred to as bastion barrier, composed of welded cord mesh panels and spiral joints, is the quality shielding product for army and flood & storm controlling. Usually, the filling material interior bastion barrier is stones or sands.
1> A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.
2> Polypropylene geo-textile liner.
3> Filling material is an easy- obtained mix of sand and small stones.
4> It can be used together to any length, and can be stacked for additional height.
Hesco barrier details:
Product Name | Hesco Barrier |
Product Type | Welded Mesh |
Material | Galvanized Steel Wire or Galfan / zinc-5% Aluminum Wire |
Wire Diameter | 3mm,4mm,5mm,6mm |
Geotextile | 250g-400g |
Geotextile colour | Sand clolor, Brown, Gray,and Military Green. |
Mesh hole | 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
PRODUCR ITEM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
HB MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) | 5+4=9 cells |
HB MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) | 2 cells |
HB MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) | 5+5=10 cells |
HB MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) | 5×2+5×2=20 cells |
HB MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) | 5+4+4=13 cells |
HB MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) | 5+4=9 cells |
HB MIL9 | 39''(1.00M) | 30''(0.76M) | 30'(9.14M) | 6+6=12 cells |
HB MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(30.50M) | 5+5+5+5=20 cells |
HB MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) | 2 cells |
HB MIL12 | 84"(2.13M) | 42"(1.06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
HB MIL19 | 108''(2.74M) | 42"(1.06M) | 10'5'(3.18M) | 6 cells |

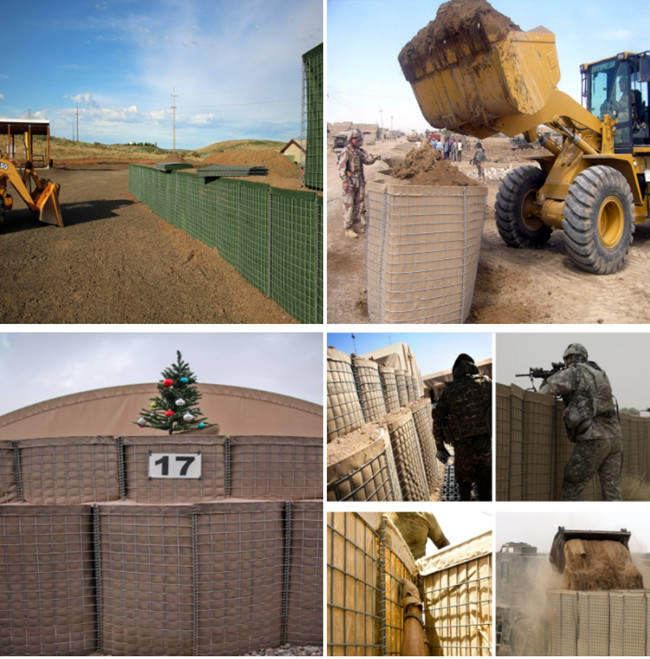

Applications:
1) Perimeter Security and Defence Walls
2) Protecting Existing Structures
3) Explosives and Contraband Search Areas
4) Protection engineering of seaside area
5) Defensive Firing Positions
6) Flood contro retaining wall
7) Coastal Erosion
|
|
