| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

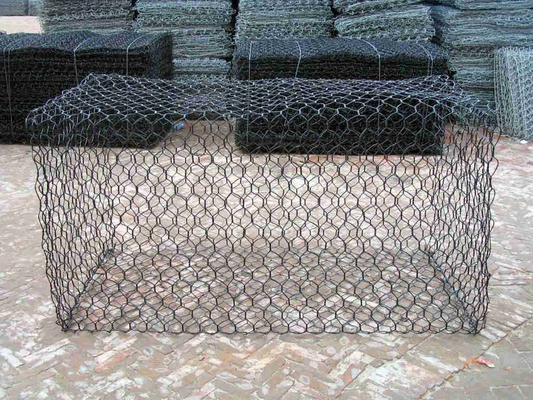

Gabion basket are multiple twisted hexagonal woven galvanized or PVC coated steel wire mesh compartmental baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
1. Electro galvanized wire
2.Hot dipped galvanized wire: 30-80g/m2; 240-280g/m2; 280-320g/m2
3. PVC & PE coated wire
4.Galfan wire: 5%Alu+95% zinc,10%Alu+90% zinc
Woven method: woven
Gabion Mesh Basket Usage:
(1) Controlling and leading the river and flood
(2) Rock fall defending
(3) Seaport project
Gabion Mesh Basket Specifications:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
Max Wide Cut |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
4300 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
4300 |
|
Normal box size (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
|
1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 |
0.50 |
|
1.0x1.0x1.0 |
0 |
1.00 |
|
|
1.5x1.0x0.5 |
0 |
0.75 |
|
|
1.5x1.0x1.0 |
0 |
1.50 |
|
|
2.0x1.0x0.5 |
1 |
1.00 |
|
|
2.0x1.0x1.0 |
1 |
2.00 |
|
|
3.0x1.0x0.5 |
2 |
1.50 |
|
|
3.0x1.0x1.0 |
2 |
3.00 |
|
|
4.0x1.0x0.5 |
3 |
2.00 |
|
|
4.0x1.0x1.0 |
3 |
4.00 |
Process of production:
Packing & loading pictures:
Application:
|
|
