| MOQ: | 50 PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

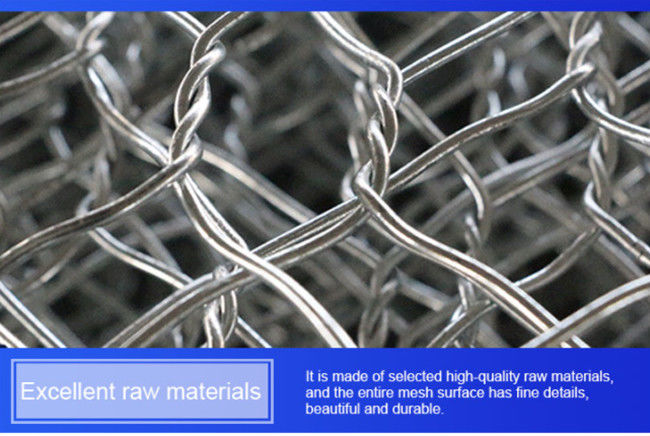

Gabion mesh is made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style.Also,we can produce products as customers’ request. Please contact us if necessary!
|
Product Name
|
Gabion
|
|||
|
Hole Type
|
Hexagonal
|
|||
|
Production process
|
Three twist / Five twist
|
|||
|
Material
|
GI wire,PVC coated wire,galfan wire
|
|||
|
Wire Diameter
|
2.0mm-4.0mm
|
|||
|
Hole Size
|
60×80mm,80×100mm,100×120mm,120×150mm
|
|||
|
Gabion Size
|
2m×1m×0.5m,2m×1m×1m,3m×1m×0.5m,3m×1m×1m
4m×1m×0.5m,4m×1m×1m,Other sizes can be customized.
|
|||
Gabion Mesh Basket Applications:
1. Control and guide of water or flood
Gabion Mesh Basket Specifications:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
Max Wide Cut |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
4300 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
4300 |
|
Normal box size (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
|
1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 |
0.50 |
|
1.0x1.0x1.0 |
0 |
1.00 |
|
|
1.5x1.0x0.5 |
0 |
0.75 |
|
|
1.5x1.0x1.0 |
0 |
1.50 |
|
|
2.0x1.0x0.5 |
1 |
1.00 |
|
|
2.0x1.0x1.0 |
1 |
2.00 |
|
|
3.0x1.0x0.5 |
2 |
1.50 |
|
|
3.0x1.0x1.0 |
2 |
3.00 |
|
|
4.0x1.0x0.5 |
3 |
2.00 |
|
|
4.0x1.0x1.0 |
3 |
4.00 |
Packing & loading pictures:

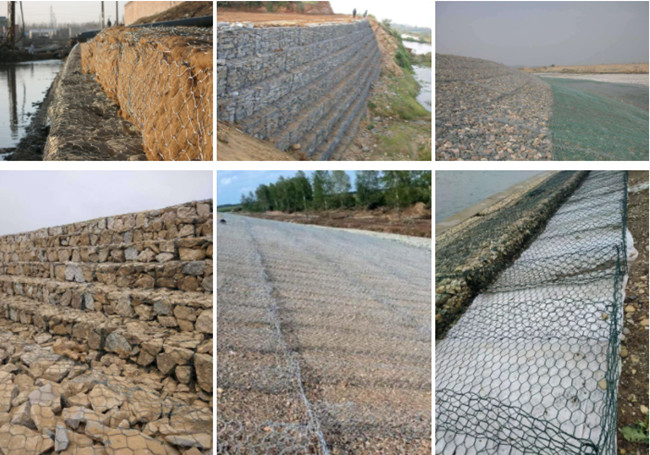

Application:
|
|
