| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

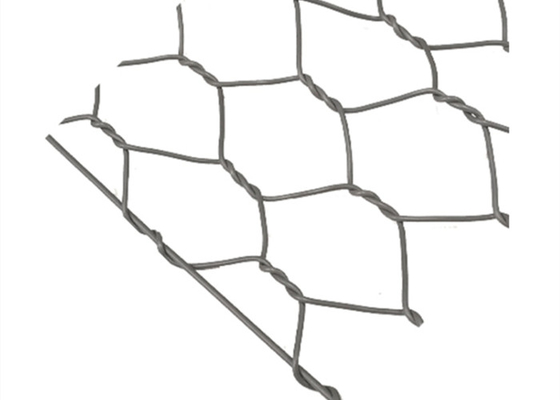

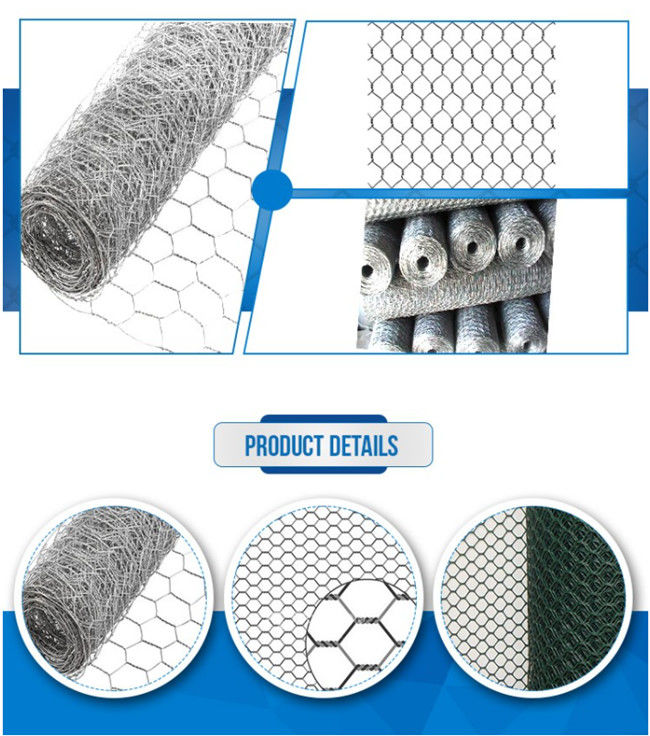

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection
Gabion Basket Surface Treatment: Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.
Gabion mesh basket specifications:
| Gabion Baskets Specifications | |||
| Mesh Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter(PVC Coated) Inner/Outside(mm) |
Strands |
| 60*80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80*100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80*120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100*120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100*150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120*150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |

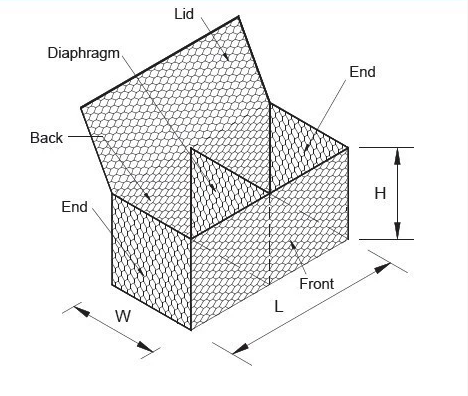

| Size | Notes | Tolerance | |||
| Length(m) | Width(m) | Height(m) | Cell Number | Volume(m³) | ±3% |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | ±5% |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
• Uniform wire coating for extra durability
• Flexible & permeable structure
• Tolerates differential settlement
• Easy to install
• No special labour is required for installation
Gabion Mesh Basket Usage:
• Control and guide of water or flood. Flood bank or guiding bank
• Preventing of rock breaking.Water and soil protection
• Bridge protection.Strengthening structure of soil
• Protection engineering of seaside area.Seaport engineering
• Isolation walls.Protection of road

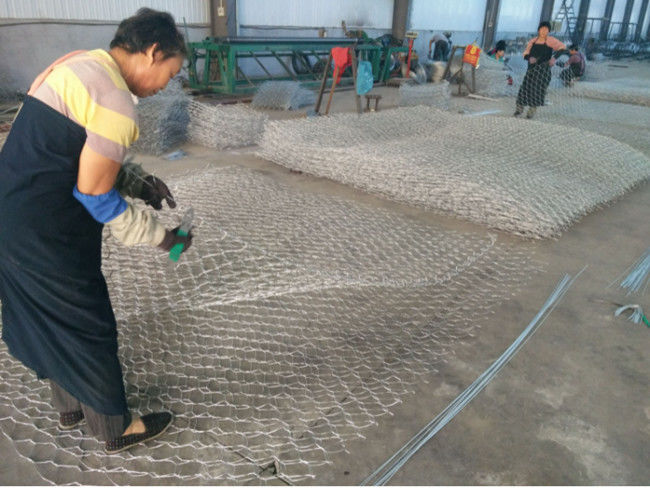

Process of production:

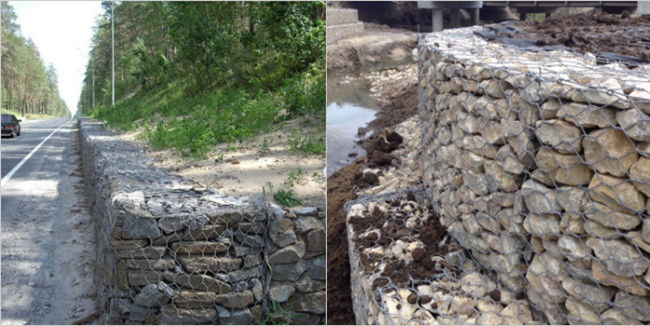

Application:
|
|
