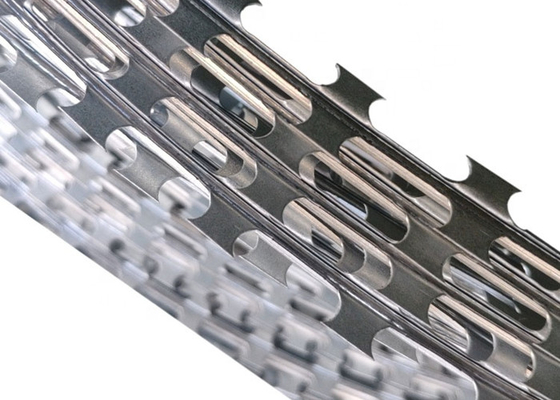

HBGB AISI 430 CBT60 Concertina Razor Wire High Security Blade
  • name
  • name

HBGB AISI 430 CBT60 Concertina Razor Wire High Security Blade

MOQ: 50 rolls
Price: negotiable
Standard Packaging: 1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton
Delivery Period: 10 - 20 days
Payment Method: L/C, T/T
Supply Capacity: 2000 rolls per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HBGB
Certification
ISO 9001
Model Number:
BTO -10, BTO -12, BTO-18, BTO-22, CBT-60, CBT-65
Product Name:
Razor Barbed Wire
Material:
Stainless Steel
SS Grade:
Ss 304, 316, 430
Blade Thickness:
0.3,0.35,0.4,0.45,0.5mm
Type:
Razor Barbed Wire Coil
Razor Type:
Single Or Cross Type
Weight Of Coil:
5 Kgs, 10 Kgs Or Customized
Length Of Covering:
6 M - 16 M
Application:
Anti-climb, Protection Mesh
Minimum Order Quantity:
50 rolls
Price:
negotiable
Packaging Details:
1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton
Delivery Time:
10 - 20 days
Payment Terms:
L/C, T/T
Supply Ability:
2000 rolls per day
High Light:

AISI 430 concertina razor wire

,

CBT60 concertina razor wire

,

high security razor blade barbed wire

Product Description

AISI 430 concertina shape razor barbed wire for security fence or prison fence





Razor barbed wire description:



It is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

Razor barbed wire characteristics:



Blade barbed wire with beautiful, economical and practical, anti - stop effect, construction and other outstanding features.



Razor barbed wire surface treatment:


Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
stainless steel core wire and blade
PVC coated core wire and blade
Hot-dipped galvanized core wire+stainless steel blade



Razor barbed wire specifications:

Concertina Coil Specification
Coil Diameter 300mm 450mm 730mm 730mm 980mm 980mm 1250mm
  (12inch) (18inch) (28inch) (36inch) (36inch) (36inch) (50inch)
Recommended Stretch Length 4m 10m 15-20m 10-12m 10-15m 8m 8m
Coil Diameter When Stretched 260mm 400mm 600mm 620mm 820mm 850mm 1150mm
Spiral Turns Per Coil 33 54/55 54/55 54/55 54/55 54/55 54/55
Clips Per Spiral 3 3 3 5 5 7 9



Barbed Tape Wire Specification
Loop Outside Diameter No.Of Loops Standard Length Per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single Coil
500mm 56 12-13M CBT-60.65 Single Coil
700mm 56 13-14M CBT-60.65 Single Coil
960mm 56 14-15M CBT-60.65 Single Coil
450mm 56 8-9M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
500mm 56 9-10M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
600mm 56 10-11M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
600mm 56 8-10M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
700mm 56 10-12M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
800mm 56 11-13M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
900mm 56 12-14M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
960mm 56 13-15M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
980mm 56 14-16M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type



Processing of razor barbed wire:

HBGB AISI 430 CBT60 Concertina Razor Wire High Security Blade 0

Packing and loading:



HBGB AISI 430 CBT60 Concertina Razor Wire High Security Blade 1







Tags:

0.5m Diameter flat wrap razor wire fencing,

16m length flat wrap razor wire fencing,

BTO 12 iron barbed wire
