Name: 16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence
Brand: HBGB
SKU: GB-0013
Price: 1.00 USD
Availability: InStock
Rating: 5 (151 reviews)

MOQ:	50 rolls
Price:	negotiable
Standard Packaging:	1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton
Delivery Period:	10 - 20 days
Payment Method:	L/C, T/T
Supply Capacity:	2000 rolls per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-0013

Product Name:

Razor Barbed Wire

Material:

Carbon Steel

Finishing:

Hot Dipped Galvanized Or Pvc Coated

Types:

BTO-10/22/28/30/,CBT60/65

Blade Thickness:

0.3, 0.35, 0.4, 0.45, 0.5 Mm

Blade Spacing:

25 Mm - 100 Mm

Razor Type:

Single Razor

Weight Of Coil:

Customized

Length Of Covering:

Customized

Application:

Anti-climb, Protection Mesh

Minimum Order Quantity:

50 rolls

Price:

negotiable

Packaging Details:

1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton

Delivery Time:

10 - 20 days

Payment Terms:

L/C, T/T

Supply Ability:

2000 rolls per day

High Light:

16m barbed wire concertina coil

0.35mm barbed wire concertina coil

ISO 9001 razor wire electric fence

Product Description

10 m Single Coils Concertina Hot Dipped Galvanized Razor Barbed Wire

Razor barbed wire description:

It is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

Razor barbed wire Paramenters:

Outside dia	450mm / 500mm / 550mm / 600mm / 650mm / 700mm /750mm / 800mm / 900mm / 950mm / 1000mm
Extension Length	8m ~ 15m
Core wire dia	1.9mm ~ 2.5mm
Blade thickness	0.32mm ~ 0.6mm
Blade type	BTO-10 / BTO-12 / BTO-15 / BTO-22 / BTO-30 / CBT-25 / BTO-30 / CBT-60 / CBT-65

Razor barbed wire Characteristics:

With beautiful and sharp blades and strong core wire,razor wire has the features of good deterrent effects,nice appearance ,easy installation,economic and practical and other properties

Razor barbed wire specifications:

Concertina Coil Specification
Coil Diameter	300mm	450mm	730mm	730mm	980mm	980mm	1250mm
	(12inch)	(18inch)	(28inch)	(36inch)	(36inch)	(36inch)	(50inch)
Recommended Stretch Length	4m	10m	15-20m	10-12m	10-15m	8m	8m
Coil Diameter When Stretched	260mm	400mm	600mm	620mm	820mm	850mm	1150mm
Spiral Turns Per Coil	33	54/55	54/55	54/55	54/55	54/55	54/55
Clips Per Spiral	3	3	3	5	5	7	9

Barbed Tape Wire Specification
Loop Outside Diameter	No.Of Loops	Standard Length Per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single Coil
500mm	56	12-13M	CBT-60.65	Single Coil
700mm	56	13-14M	CBT-60.65	Single Coil
960mm	56	14-15M	CBT-60.65	Single Coil
450mm	56	8-9M(3CLIPS)	BTO-10.12.18.22.28.30	Cross Type
500mm	56	9-10M(3CLIPS)	BTO-10.12.18.22.28.30	Cross Type
600mm	56	10-11M(3CLIPS)	BTO-10.12.18.22.28.30	Cross Type
600mm	56	8-10M(5CLIPS)	BTO-10.12.18.22.28.30	Cross Type
700mm	56	10-12M(5CLIPS)	BTO-10.12.18.22.28.30	Cross Type
800mm	56	11-13M(5CLIPS)	BTO-10.12.18.22.28.30	Cross Type
900mm	56	12-14M(5CLIPS)	BTO-10.12.18.22.28.30	Cross Type
960mm	56	13-15M(5CLIPS)	BTO-10.12.18.22.28.30	Cross Type
980mm	56	14-16M(5CLIPS)	BTO-10.12.18.22.28.30	Cross Type

Processing of razor barbed wire:

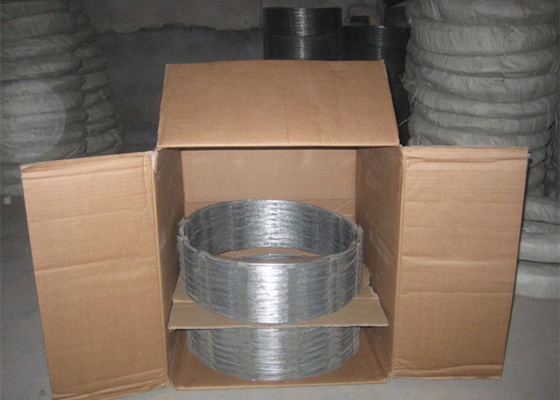

Packing and loading:

16m 0.35mm Barbed Wire Concertina Coil ISO 9001 Razor Electric Fence 2
