Q235 4 Points Double Twisted Barbed Wire Weather Resistance Cow Wire Fence
  • name
  • name

Q235 4 Points Double Twisted Barbed Wire Weather Resistance Cow Wire Fence

MOQ: 50 rolls
Price: negotiable
Standard Packaging: bulk or on pallet
Delivery Period: 10-20days
Payment Method: L/C, T/T
Supply Capacity: 3000 rolls per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HBGB
Certification
ISO 9001
Model Number
GB-0012
Features:
Anti Climb
Product Name:
Galvanized Barbed Wire
Material:
Q 195 Wire
Finishing:
Galvanized Or PVC Coated
Color:
Green Or Silver
Twist Type:
Traditional Twist
Wire Diameter:
1.6 Mm - 3.2 Mm
Barb Distance:
7.5-15 Cm
Coil Weight:
25 Kg Or 50 Kg
Inspection:
Accept Third Party Inspection
Minimum Order Quantity:
50 rolls
Price:
negotiable
Packaging Details:
bulk or on pallet
Delivery Time:
10-20days
Payment Terms:
L/C, T/T
Supply Ability:
3000 rolls per day
High Light:

4 points double twisted barbed wire

,

Q235 double twisted barbed wire

,

weather resistance cow wire fence

Product Description

Traditional twist anti-rust heavy zinc coated galvanized barbed wire





Galvanized Barbed Wire Details:


1. Materials:Q195 and Q235
2. Surface treatment: galvanized and PVC coated
3.Tensile of Strength:
   1)soft:380N/mm2
   2) stronger 800N/mm2-1200N/mm2

4.IOWA type,2strands, 4 points.Barb distance 3" to 6"(Tolerance +/-1/2")



Galvanized Barbed Wire Types:


double twisted barbed wire, general barbed wire, single strand barbed wire, PVC barbed wire, stoving varnish barbed wire.



Galvanized Barbed Wire Features:

Good corrosion resistance
Rust and weather resistance
Long service life
High security
Anti-climbing and anti-theft
Wide range of applications

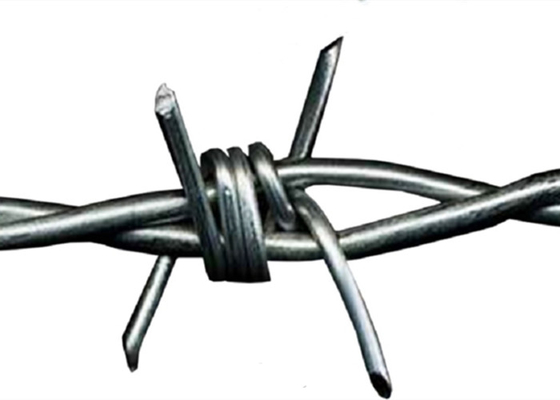

Q235 4 Points Double Twisted Barbed Wire Weather Resistance Cow Wire Fence 0

Galvanized barbed wire specifications:


Specification of barbed wire

Gauge of Strand and
Barb in BWG(Anne X3)

Approximate Length per kilogram in Meter

Barbs Spacing 3''

Barbs Spacing 4''

Barbs Spacing 5''

Barbs Spacing 6''

12x12

6.0167

6.7590

7.2700

7.6376

12x14

7.3335

7.9051

8.3015

8.5741

12-1/2x12-1/2

6.9223

7.7190

8.3022

8.7221

12-1/2x14

8.1096

8.8140

9.2242

9.5620

13x13

7.9808

8.8990

9.5721

10.0553

13x14

8.8448

9.6899

10.2923

10.7146

13-1/2x14

9.6079

10.6134

11.4705

11.8553

14x14

10.4569

11.6590

12.5423

13.1752

14-1/2x14-1/2

11.9875

13.3671

14.3781

15.1034

15x15

13.8927

15.4942

16.6666

17.5070

15-1/2x15-1/2

15.3491

17.1144

18.4060

19.3386




Pictures:

 Q235 4 Points Double Twisted Barbed Wire Weather Resistance Cow Wire Fence 1

Loading pictures:

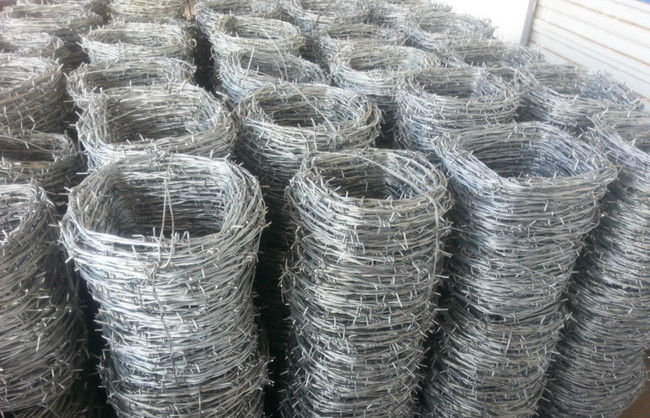

Q235 4 Points Double Twisted Barbed Wire Weather Resistance Cow Wire Fence 2







Tags:

12 gauge barbed wire coil,

12x14 barbed wire coil,

bright white barbed wire bunnings
