| MOQ: | 50 rolls |
| Price: | negotiable |
| Standard Packaging: | bulk or on pallet |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 rolls per day |

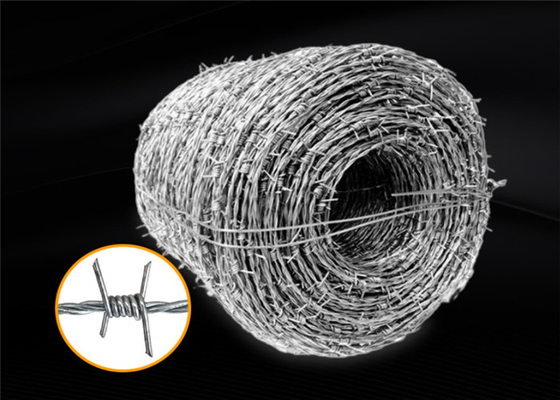

Barbed wire is a kind of modern security fencing materials,Barbed wire can be installed as deterrent to the perimeter intruders with piecing and cutting razor blades mounted at the top of the wall . Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
1) hot dipped galvanized barbed wire
2) electrical galvanized barbed wire
3) PVC barbed wire
4) PE barbed wire
Galvanized Barbed Wire Usage:

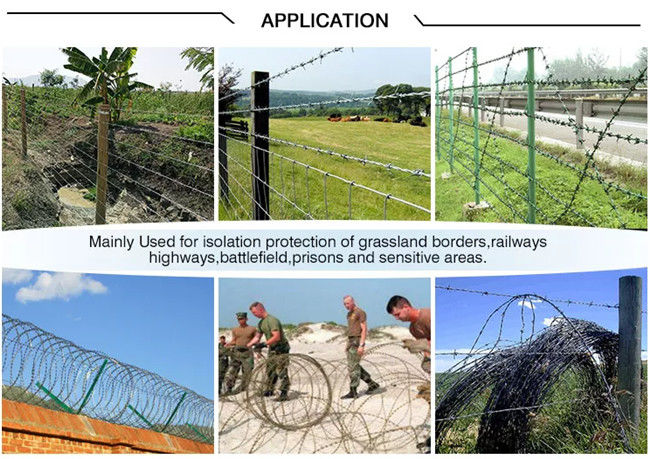

Barbed wire is mainly used in protecting of grass boundary,railway,highway,nation defence,airport,orchard,etc. It has a excellent protective performance,beautiful appearance, various patterns.
Galvanized barbed wire specifications:
| GALVANIZED BARBED WIRE | ||||
|
Wire Diameter (BWG) |
Length per KG | |||
|
Barb distance 3” |
Barb distance 4” |
Barb distance 5” |
Barb space 6” |
|
| 12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
| 13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
| 13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
|
PVC barbed wire |
Wire Diameter | Barbs’ distance | Barb length | |
| Before coating | After coating |
7.5cm - 15cm |
1.5cm - 3cm |
|
| 1.0mm - 3.5mm | 1.4mm - 4.0mm | |||
| Bwg11 - Bwg20 | Bwg8 - Bwg17 | |||
| Swg11 - Swg20 | Swg8 - Swg17 | |||
| Other sizes can be made as request | ||||
|
|
