| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |
Welded gabion basket is made of high quality materials with outstanding corrosion resistant coating, which make the welded gabion cage a more stable and longer service life. The wires are welded into sheets and then assembled into cages. The welded gabion cage has a wider range application than the woven gabion cage in our daily life.
1. Economical. Just fill the stone into the gabions and seal it.
2. easy installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. No collapse even under big scope of deforming.
5. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6. Good permeation can prevent the damage by hydrostatic.
7. Less transportation freight. It can be folded together for transportation and further installation.
Manufacture Stone Galvanized Gabion Welded Fence Mesh Box For Wall
| Nominal Box sizes (m) | Mesh size (mm) | No. of diaphragms (no.) | Capacity per box (m3) |
| 1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 | 0.50 |
| 1.0x1.0x1.0 | 0 | 1.00 | |
| 1.5x1.0x0.5 | 0 | 0.75 | |
| 1.5x1.0x1.0 | 0 | 1.50 | |
| 2.0x1.0x0.5 | 1 | 1.00 | |
| 2.0x1.0x1.0 | 1 | 2.00 | |
| 3.0x1.0x0.5 | 2 | 1.50 | |
| 3.0x1.0x1.0 | 2 | 3.00 | |
| 4.0x1.0x0.5 | 3 | 2.00 | |
| 4.0x1.0x1.0 | 3 | 4.00 |
welded gabion mesh lnstallation:
1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

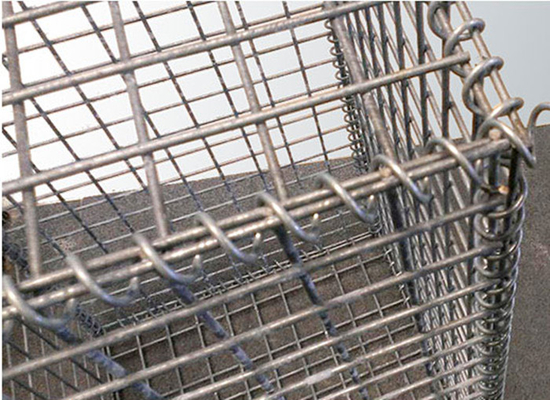

2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones
|
|
