| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

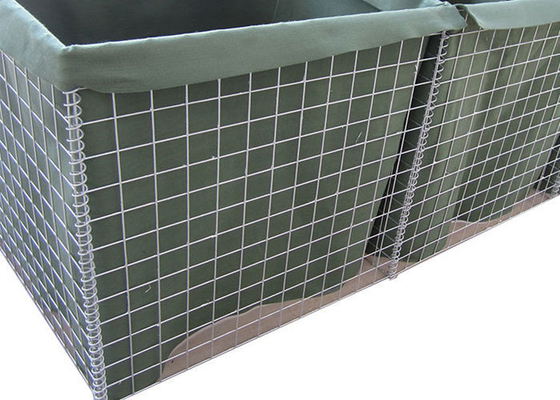

Hesco Barrier are also known as modern metal meshes for flood protection and military fortifications.Composed of a collapsible wire mesh container,and heavy geotextile, it is used as a temporary or semi-permanent barrier or bastion to block an explosion or small weapon attack.
High security
Flexible structures
Geotextile permeable
Easy installation
Easy to carry
Hesco barrier raw material specifications:
| Wire diameter | 3.85mm,4mm,5mm etc | |||
| Mesh Size | 75mmx75mm etc | |||
| Spring wire diameter | 3mm,4mm,5mm etc | |||
| Panel Finish | Hot dipped galvanized or Galfan coated | |||
| Geotextile | Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc | |||
| Packing Wrapped with shrink film or packed in pallet | ||||
| Technical Specification for Geotextile Fabric | ||||
| Color | Beige sand,Olive green,Grey | |||
| Mass(g/sqm) | 250,300,350 | |||
| Tensile strength | 16kN | |||
| Tear Strength | 0.42kN | |||
| CBR Puncture | 3.1kN | |||
|
UV strength retention
ASTM D4355
|
50% at 500hours (5 years use life in common environment) |
|||
| 70% at 500hours (10 years use life in common environment) |
||||
| Model | Height(M) | Width(M) | Length(M) | Number of cells |
| ST-1(Mil 1) | 1.37 | 1.06 | 10 | 5+4=9 cells |
| ST-2(Mil 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| ST-3(Mil 3) | 1.0 | 1.0 | 10 | 5+5=10 cells |
| ST-4(Mil 4) | 1.0 | 1.5 | 10 | 5+5=10 cells |
| ST-5(Mil 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| ST-6(Mil 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| ST-7(Mil 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| ST-8(Mil 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| ST-9(Mil 9) | 1.0 | 0.76 | 9.14 | 6+6=12 cells |
| ST-10(Mil 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
|
|
