| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

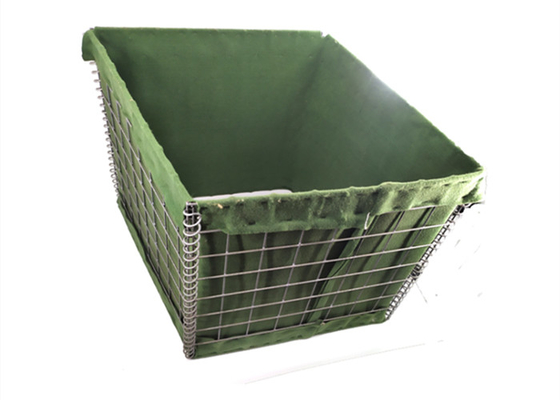

Hesco barrier is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, and military applications. For erosion control, caged riprap is used. For dams or in foundation construction, cylindrical metal structures are used. In a military context, earth- or sand-filled gabions are used to protect artilley crews from enemy fire.
1> A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.
2> Polypropylene geo-textile liner.
3> Filling material is an easy- obtained mix of sand and small stones.
4> It can be used together to any length, and can be stacked for additional height.
Hesco barrier raw material specifications:
| Wire Diameter: | 5.0mm (Standard), 4.0mm |
| Mesh Hole: | 76.2*76.2mm (Standard), 80*80mm |
| Diameter of Spring: | 4.0mm |
| Diameter of Joint Pin: | 4.0mm |
| Cells per Set: | 1 cell, 2 cells, 3 cells, 4 cells, 5 cells |
| Color of Geotextile: | Military Green, Beige, Brown, Sand Color |
| Weight of Geotextile: | 300GSM (Standard) |
|
PRODUCR ITEM NO.
|
HEIGHT
|
WIDTH
|
LENGTH
|
CELLS NO.
|
|
HB MIL1
|
54''(1.37M)
|
42''(1.06M)
|
32'9''(10M)
|
5+4=9 cells
|
|
HB MIL2
|
24'' (0.61M)
|
24''(0.61M)
|
4'(1.22M)
|
2 cells
|
|
HB MIL3
|
39''(1.00M)
|
39''(1.00M)
|
32'.9''(10M)
|
5+5=10 cells
|
|
HB MIL4
|
39''(1.00M)
|
60''(1.52M)
|
32'.9''(10M)
|
5×2+5×2=20 cells
|
|
HB MIL5
|
24''(0.61M)
|
24''(0.61M)
|
10'(3.05M)
|
5 cells
|
|
HB MIL6
|
66''(1.68M)
|
24''(0.61M)
|
10'(3.05M)
|
5 cells
|
|
HB MIL7
|
87''(2.21M)
|
84''(2.13M)
|
91'(27.74M)
|
5+4+4=13 cells
|
|
HB MIL8
|
54''(1.37M)
|
48''(1.22M)
|
32'.9''(10M)
|
5+4=9 cells
|
|
HB MIL9
|
39''(1.00M)
|
30''(0.76M)
|
30'(9.14M)
|
6+6=12 cells
|
|
HB MIL10
|
87''(2.21M)
|
60''(1.52M)
|
100'(30.50M)
|
5+5+5+5=20 cells
|
|
HB MIL11
|
48''(1.22M)
|
12''(0.30M)
|
4'(1.22M)
|
2 cells
|
|
HB MIL12
|
84"(2.13M)
|
42"(1.06M)
|
108"(33M)
|
5+5+5+5+5+5=30 cells
|
|
HB MIL19
|
108''(2.74M)
|
42"(1.06M)
|
10'5'(3.18M)
|
6 cells
|
Applications:
|
|
