| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion mattress, also called or Mac mattress, is made of steel hexagonal wire mesh. Gabion mattress are filled with rocks at the construction site to form flexible, permeable, monolithic structure.
es are wider, with less depth than standard gabions. es are often used as flexible foundation slabs under gabions. Or used as channel linings and revetment mats.
1. Materials: electro galvanized, hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).
2. Zinc coating: 10-300g/m2.
3. Tensile strength between 380N/mm2 -- 500N/mm2.
4. Elongation≥ 12%.
5. Mesh hole size: 60*80m, 80*100mm,80*120mm,100*120mm,120*150mm.
Gabion Usage:

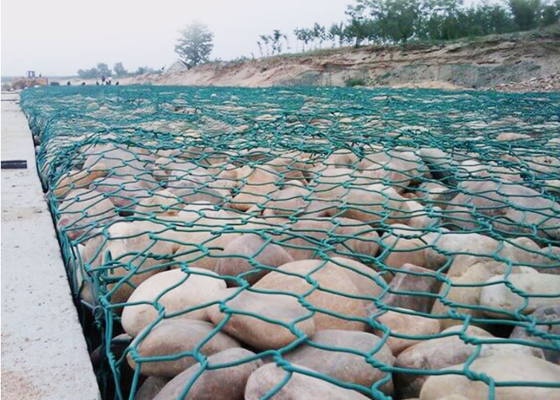

Gabion mattress is used for river bank and scour protection, bridge and weir protection, channel linings and erosion control. It is also widely used for the embankment stability.
The woven gabion mattress can be used in the differential settlement applications and the welded gabion mattress can be used in the landscape constructions.
Gabion Specifications:
| Specifications of gabion mattress | ||
| Length (m) |
Width (m) |
Height (m) |
| 2 | 1 | 0.15 0.17 0.23 0.3 |
| 3 | 1 | |
| 3 | 2 | |
| 4 | 1 | |
| 4 | 2 | |
| 5 | 1 | |
| 5 | 2 | |
| 6 | 1 | |
| 6 | 2 | |
| Hot dip galvanized gabion box | ||
| Size(m) | Mesh size(cm) |
Diameter(mm) selvage wire/mesh wire/tie wire |
|
2x1x1 2x1x0.5 |
8x10 10x12 |
3.4/2.7/2.2 3.9/3.0/2.2 3.9/2.7/2.2 |
|
3x1x1 3x1x0.5 |
||
| 4x1x1 | ||
| PVC coated gabion box | |||
| Size(m) | Mesh size(cm) |
Before PVC Diameter(mm) selvage wire/mesh wire/tie wire |
After PVC Diameter(mm) selvage wire/main wire/tie wire |
|
2x1x1 2x1x0.5 |
8x10 10x12 |
3.4/2.7/2.2 | 4.4/3.7/3.2 |
Packing and transportion:
|
|
