| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | bulk packing, in bundle or by pallet |
| Delivery Period: | 15-25days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |

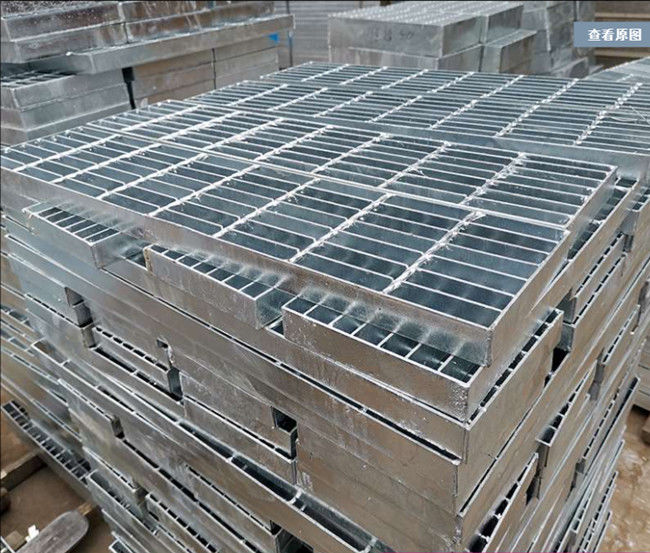

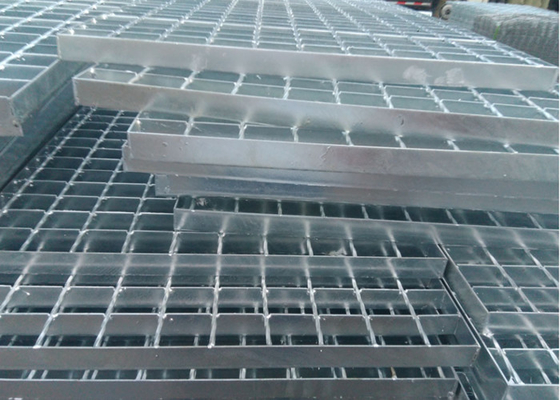

Steel Bar Grating, also known as Welded Steel Bar Grate is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel Bar Grating is available in a variety of bearing bar spacing and thicknesses depending on applications and load requirements.
Surface process of plain steel bar grating:
There are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.
Plain bar grating specifications:
|
Common Specification Of Steel Grating
|
|
|
Material Standard
|
ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,
Mild steel & Low carbon steel, etc |
|
Bearing Bar
(width*thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
|
Surface treatment
|
untreated(black), hot-dipped galvanized ,powder coated,
electroplate, painting or as per customers’ requirement. |
|
Grating Style
|
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
|
Corrosion resistance, Rust resistance.
Anti-slip resistance, Good air circulation.
Good drainage performance, Easy to install and uninstall.

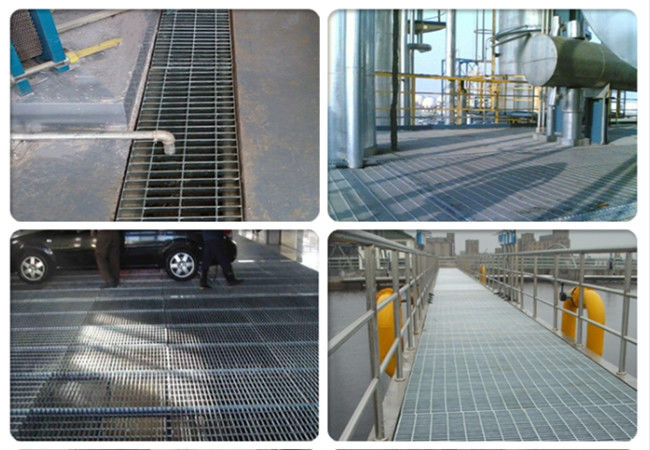

widely used in petroleum chemical industry, power plants, water plants, sewage treatment plants, municipal works, sanitation engineering and other fields of the platforms, walkways, trench trestle bridge cover, covers, ladders, fence, fence, etc.
|
|
