| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | bulk packing, in bundle or by pallet |
| Delivery Period: | 15-25days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |

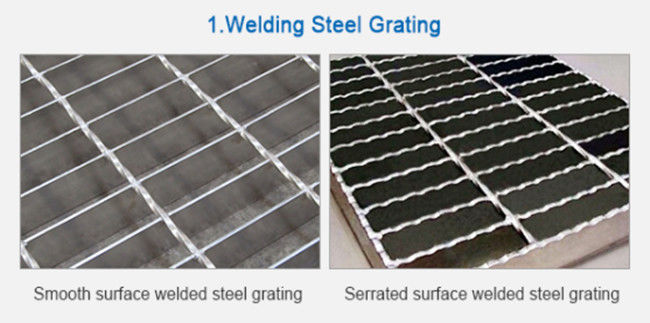

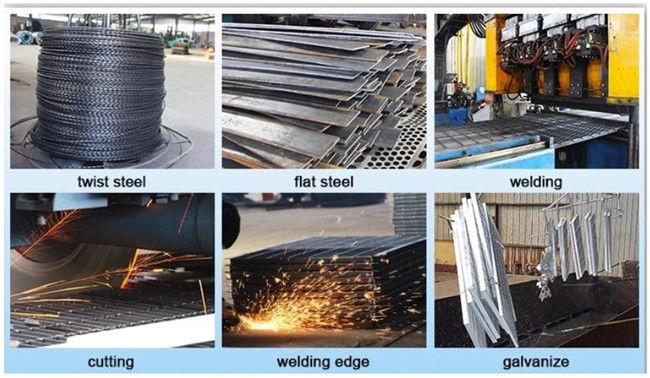

Steel Grating made by welding with flat steel and cross/round bars with certain distances.
Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
Plain bar grating specifications:
| No. | Terms | Description |
|
1
|
Material | Low carbon,middle carbon,stainless steel |
|
2
|
Bearing bar size |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10,100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',
1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',
1 1/2'x1/8' etc.
|
| 3 | Bearing bar pitch |
15,20,25,30,33,35,38,40,50,60,80,90mm |
| 4 | Cross bar pitch |
24-200mm |
| 5 | Surface treatment |
Hot dipped galvanized,painted,self-color, |
| 6 | Grating standard |
YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985 |
| 7 | Bearing bar type |
F,I ,S,IS type |
| 8 | Application |
Floor walkway,industrial platform,stair tread,metal ceiling |
| 9 | HS Code |
73089000 |

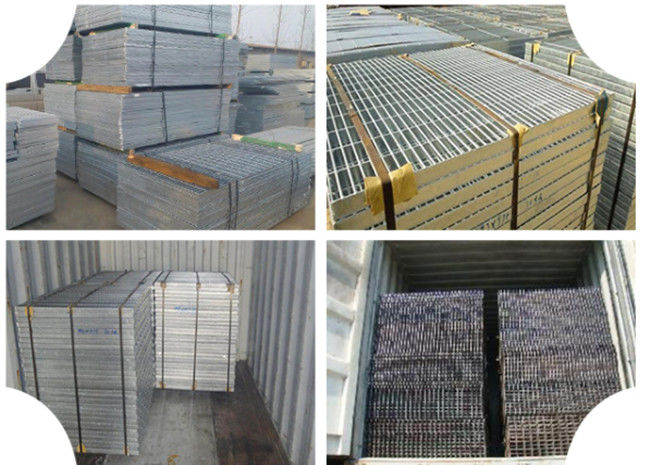

| 10 | Package |
Pallets in containers packed by steel strap and worthy sea shipping |
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.

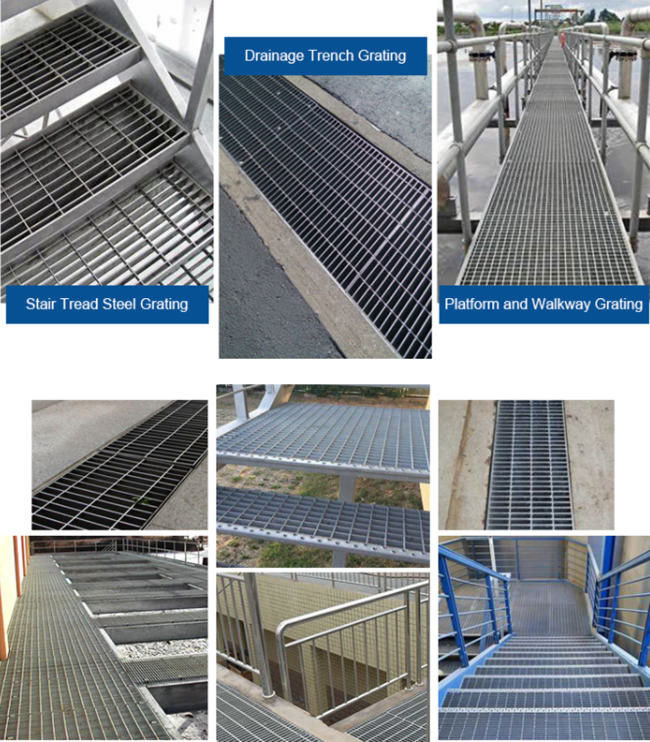

Plain steel bar grating usages:
Their main applications are drain covers, steelwork platform panels, and steel stair treads. Industrial platform flooring and walkway, traffic and steel structure etc.
|
|
