| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 sets per day |

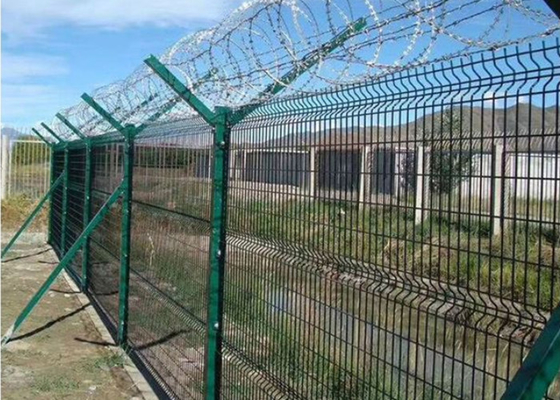

Airport Fence is also known as Y-Shape Security Fence. It is strengthened by the V-shaped support arm and welded mesh panel or chain link fence, security fittings and hot-dip galvanized concertina razor mesh to form a high level of strength and security.
Airport fence is widely used around the airports all over the world, also used as military fence, prison fence and harbor fence.
1) HIGH QUALITY MATERIAL
Strictly select the production of raw materials, choose to meet our standards for production
2) SUPPORT FOR CUSTOM
Can be customized according to customer requirements specifications. colors. etc
3) COATING PROCESS
The life of the product is determined by the craftsmanship spray molding process and the high anticorrosion and antirust technology
4) UNIFORM MESH
Uniform mesh pass, good appearance of the product
1)Panel
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Panel Height | Fence Height | |
|
Big Panel
|
50x100mm
|
4.00mm
|
Gal.+PVC coated
|
2.50m
|
2000mm | 2700mm |
| 2300mm | 3200mm | |||||
| 2600mm | 3700mm | |||||
| 530mm | 2700mm | |||||
|
V panel
|
630mm | 3200mm | ||||
| 730mm | 3700mm |
2)Y post
| Profile | Wall Thickness | Surface Treatment | Length | Base Plate | Rainhat |
| 60x60mm | 2.0mm 2.5mm |
Gal.+PVC coated | 2700mm I+530mm V | Available On request |
Plastic or Metal |
| 3100mm I+630mm V | |||||
|
3600mm I+730mm V |
3) Razor Wire Common Specifications
|
Razor Wire Type |
BTO-22 |
|||
|
Core Wire Diameter |
2.5mm |
|||
|
Blade |
0.5mm |
|||
|
Coil Diameter |
500mm, 600mm, 700mm |
|||
|
Surface Treatment |
Hot dipped galvanized |
|||
Large Panel, V panel, razor wire, Y post and accessories.
|
|
