| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 sets per day |

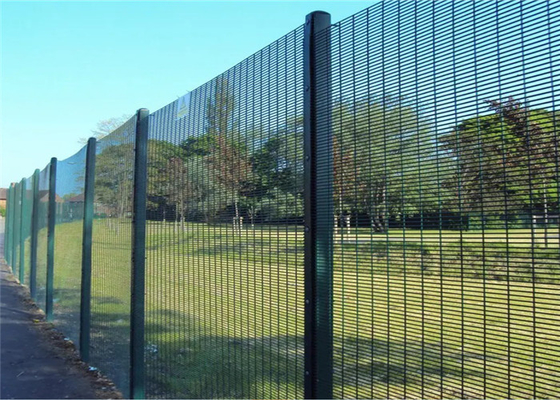

358 Anti Climb Security Fence is one security fence that is extremely difficult to penetrate through, because the small mesh aperture is effectively finger proof, and extremely difficult to attack with traditional hand tools.
Anti climb mesh fence is also called 358 fence( 3"×0.5"×8 guage), also known as "prison fence" or anti-climb fence. "358"comes from its measurements 3" x 0.5" x 8 gauge which equates to approx.76.2mm x 12.7mm x 4mm in metric.
* Material: Q195, steel wire
* Surface treatment:
I. Black wire welded mesh + pvc coated;
II. Galvanized welded mesh + pvc coated;
III. Hot dipped galvanized welded mesh + pvc coated.
(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)
.
Anti climb mesh fence specification:
| MESH | PANELS | POST | ||||
| Wire | Opening | Height x Width | Section | O/A Length | Total number of fixings | |
| mm | mm | mm | mm | mm | Inters-1 Clamp bar | Comers-2 Clamp bar |
| 4 | 12.7 x 76.2(3”x1/2”) | 2007 x 2515 | 60 x 60 x 2.5 | 2700 | 7 | 14 |
| 4 | 12.7 x 76.2(3”x1/2”) | 2004 x 2515 | 60 x 60 x 2.5 | 3100 | 9 | 18 |
| 4 | 12.7 x 76.2(3”x1/2”) | 2997 x 2515 | 80 x 80 x 2.5 | 3800 | 11 | 22 |
| 4 | 12.7 x 76.2(3”x1/2”) | 3302 x 2515 | 80 x 80 x 2.5 | 4200 | 12 | 24 |
| 4 | 12.7 x 76.2(3”x1/2”) | 3607 x 2515 | 100 x 60 x 3 | 4500 | 13 | 26 |
| 4 | 12.7 x 76.2(3”x1/2”) | 3607 x 2515 | 100 x 100 x 3 | 4500 | 13 | 26 |

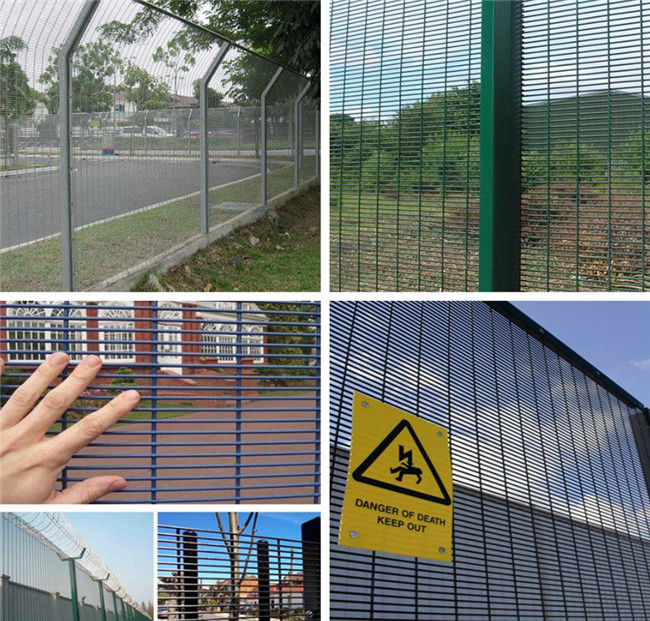

358 mesh Fence is widely used for the places need high security protection such as border, prison, military area or other places has lower security protection.
|
|
