| MOQ: | 100sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 sets per day |
Temporary fence also known as temp fencing .It is widely used for temporary construction site and special events.it is made up of fence panel, feet and clamp .All of those are easy to transport and assemble.It is widely used in Australia ,New Zealand, Canada market.
Australia temporary fence consists of these parts: the fence panel, brace, feet and clamps/clips.

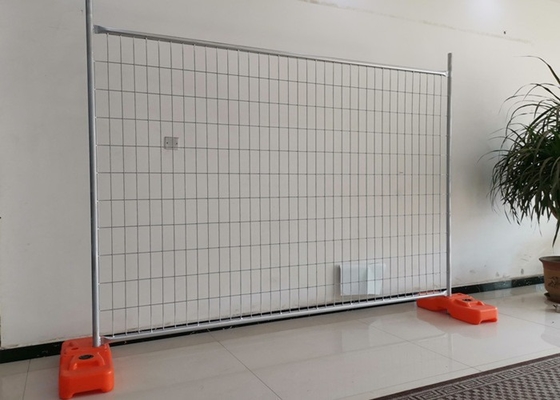

Australia Temporary Construction Fence Panel information:
|
Product Information
|
|
|
Material:
|
Low carbon steel.
|
|
Surface treatment:
|
PVC coated, powder coated, galvanized, painted.
|
|
Common color:
|
Yellow, orange, green, blue, red.
|
|
Middle frame:
|
Vertical or horizontal square pipe.
|
|
Frame pipe shape:
|
Square.
|
|
Fittings:
|
Top coupler:
Coupler with two round tubular legs. Coupler with round and square tubular legs. Fencing feet: Common size: 860 × 80 × 6 or 7 mm (thickness). Standard fence feet. Anchor base feet. |

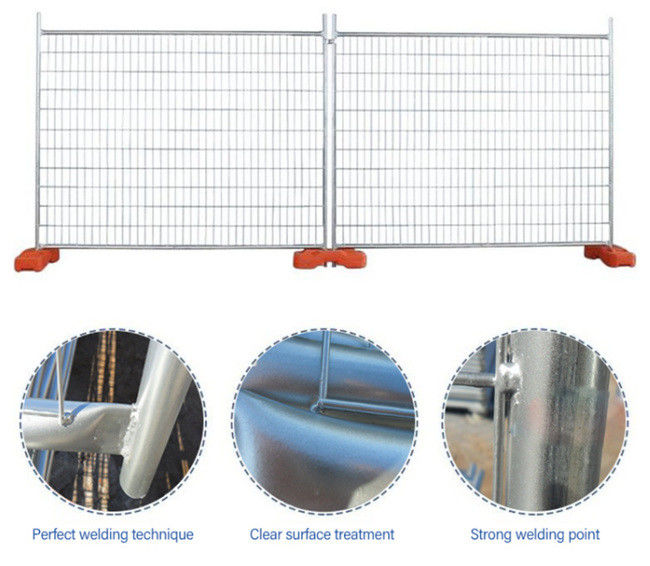

1. weld the mesh
2. weld frame posts
3. weld the frame with the mesh
4. finished
|
Specifications
|
Normal Size
|
|
Panel Height(mm)
|
1800,2000,2100
|
|
Panel Length(mm)
|
2000,2100,2300,2400,2500
|
|
Frame Post(mm)
|
Φ32*1.5,38*1.5,42*2.0,48*2.0
|
|
Infill Wire Diameter(mm)
|
2.5-6.0 Horizontal,2.5-6.0 Vertical
|
|
Infill Welded Mesh Size(mm)
|
50*50,50*100,50*200,75*150,100*300
|
|
Surface Treatment
|
Pre-galvanized wire and tube welded,high zinc coating wire and tube welded
|
Packing& Loading:
|
|
