| MOQ: | 100sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 sets per day |

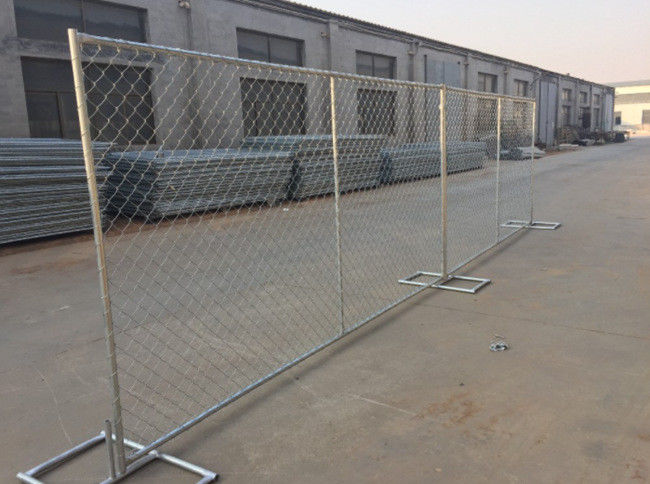

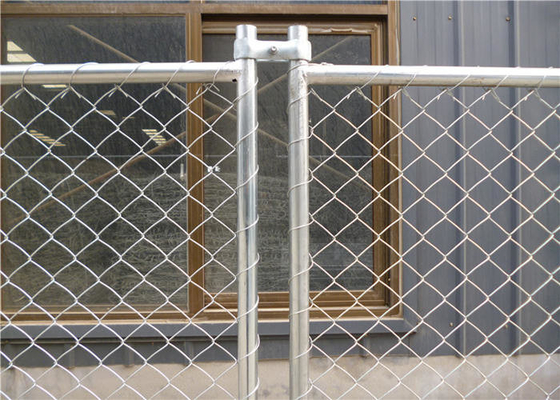

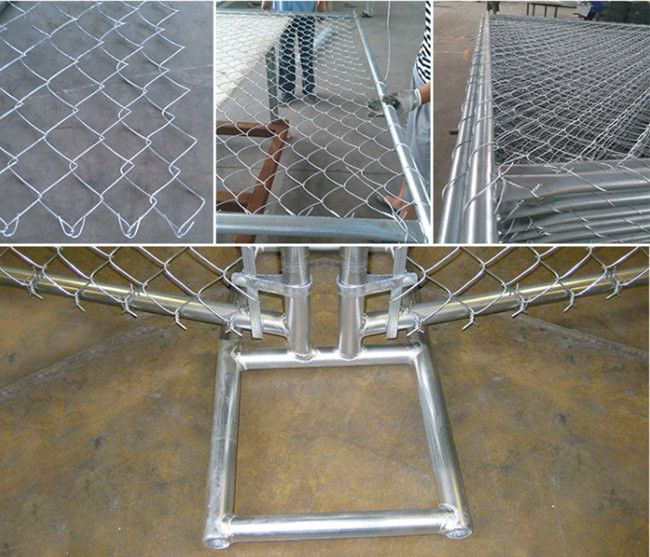

Chain Link Temporary fence panel is also known as American temporary fence, temporary chain link fence, portable fence, no dig fence, temp fencing and mobile fence. It is consist of chain link panel, round tube frame, steel feet, optional stays and clamps. This kind of fence has a superior structure, mobility and environmental suitability is very good.
| Material | Low carbon steel |
| Surface treatment | Hot dipped galvanized |
| Fence height | 5ft , 6ft, customized size |
| Fence length | 10ft, 12ft, 14ft, or customized size |
| Wire diameter | 2.5mm, 2.7mm, 3mm, 3.5mm, 4mm, etc. |
| Frame tube | O.D. 32mm |
| Cross brace tube | O.D. 25mm |
| Base size | 18" W x 36"L, customized size |
| Chain link mesh size | 2" ; 2-1/4" |
|
Chain Link Panel Temporary Fence Specification
|
|||
|
Fence panel height
|
4ft, 6ft, 8ft
|
||
|
Fence panel width/length
|
10ft, 12ft, 14ft, etc
|
||
|
Wire diameter
|
2.7mm (11.5 gauge), 2.5mm, 3mm
|
||
|
Chain link mesh size
|
57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.
|
||
|
Frame tube O.D
|
33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness
|
||
|
Vertical/Cross tube O.D
|
25mm or 32mm with 1.6mm (0.065") wall thickness
|
||
|
Fence base/stand
|
610x590mm (24'' x 23''), 762x460mm (30'' x 18''), etc
|
||
|
Accessory
|
Clamp, extra brace (diagonal brace)
|
||
|
Material
|
Hot dipped galvanized steel
|
||
|
Surface treatment
|
All joints are welded and sprayed with a galvanized paint to cover any exposed metal
|
||
1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.
Some of the most common uses for chain link panels include high-rise commercial construction sites, home developments, highway projects, store front renovations, and for any application where the installation of a post-driven fence is not possible or desired.
|
|
