| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 sets per day |

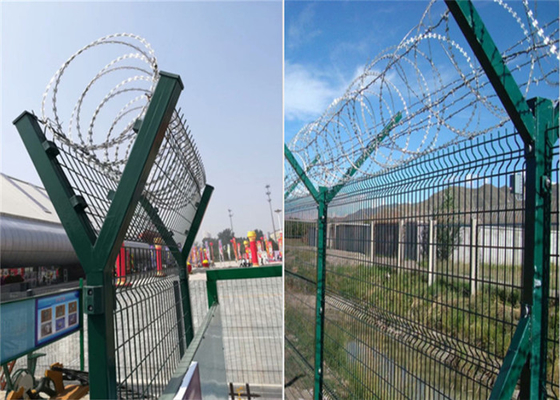

Airport Fence is also known as Y-Shape Security Fence. It is strengthened by the V-shaped support arm and welded mesh panel or chain link fence, security fittings and hot-dip galvanized concertina razor mesh to form a high level of strength and security.
1. Double Wire, Double Rigidity
The security fence has double bars at every mesh to guarantee high rigidity.
2. High Security
The robust bars provide an excellent degree of security protecting against unwanted intrusion and trespass and offers a greater degree of protection against cut-through.
3. Long Life
Plastic coated welded mesh panels guarantee long life of the fence.
4. Excellent Visual appearance
The security fence provides excellent visual appearance, which is ideal for play area.
1. Airport Fence Panel Common Specifications
|
Panel
|
Mesh
|
Wire Thickness
|
Surface Treatment
|
Panel Width
|
Folds NOS.
|
Panel
Height
|
Fence Height
|
|
Big Panel
|
50x100mm
55x100mm
|
4.00mm
4.50mm
5.00mm
|
Galvanized and
Electrostatic polyester
coated or PVC coated
|
2.50m
3.00m
|
4
|
2000mm
|
2700mm
|
|
5
|
2300mm
|
3200mm
|
|||||
|
6
|
2600mm
|
3700mm
|
|||||
|
V panel
|
2
|
530mm
|
2700mm
|
||||
|
2
|
630mm
|
3200mm
|
|||||
|
2
|
730mm
|
3700mm
|
2. Y Post Common Specifications
|
Profile
|
Wall Thickness
|
Surface Treatment
|
Length
|
Base Plate
|
Rainhat
|
|
60x60mm
|
2.0mm
2.5mm
|
Galvanized and
Electrostatic polyester powder coated
|
2700mm I
+550mm V
|
Available
on request
|
Plastic or Metal
|
|
3100mm I
+650mm V
|
|||||
|
3600mm I
+750mm V
|
|
60x60mm
|
2.0mm
2.5mm
|
Galvanized and
Electrostatic polyester powder coated |
1900mm /
+400mm I
|
Available
on request
|
Plastic or Metal
|
|
2200mm /
+500mm I
|
|||||
|
2500mm /
+500mm I
|
3. Razor Wire Common Specifications
|
Type
|
Core wire /Blade thickness
|
Surface Treatment
|
Length
|
Out side diameter
|
Clips
|
|
BTO-22
|
2.5/0.5mm
|
Hot dipped galvanized
|
8-10m/roll
|
500mm
|
3 lines
|
|
600mm
|
|||||
|
700mm
|
Large Panel, V panel, razor wire, Y post and accessories.
|
|
