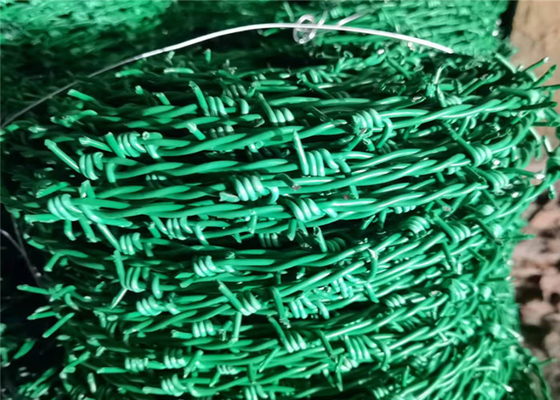

13cm Spacing Galvanized Barbed Wire 3mm Thick Pvc Wrap

13cm Spacing Galvanized Barbed Wire 3mm Thick Pvc Wrap

MOQ: 50 rolls
Price: $ 8-30 /roll
Standard Packaging: bulk or on pallet
Delivery Period: 10-20days
Payment Method: L/C, T/T
Supply Capacity: 3000 rolls per day
Detail Information
Place of Origin
China
Brand Name
HBGB
Certification
ISO 9001
Model Number
GB-0012
Product Name:
Galvanized Barbed Wire
Wire Type:
PVC Coated Iron Wire
Color:
Green Color
Wire Diameter:
3mm
Barb Distance:
5 Inch
Weaving Way:
Normal Twist
Type:
Barbed Wire Coil
Coil Weight:
25 Kg
Application:
Defensive Fence
Samples:
Available
Minimum Order Quantity:
50 rolls
Price:
$ 8-30 /roll
Packaging Details:
bulk or on pallet
Delivery Time:
10-20days
Payment Terms:
L/C, T/T
Supply Ability:
3000 rolls per day
High Light:

13cm spacing galvanized barbed wire

,

3mm thick galvanized barbed wire

,

pvc wrap green coated barbed wire

Product Description

13cm Barbed Spacing 3mm Thick Pvc Wrap Galvanized Barbed Wire





Galvanized Barbed Wire Introduction:



Barbed wire, also called barb wire, is a type of steel fencing wire constructed with sharp edges or points arranged at intervals along the strands. Due to the high security and lower cost, barbed wire is now widely used as a security barrier. According to different surface treatment, It plays the role of protection in mines,gardens and apartments,frontier,defence,and enclosure of prisons.



13cm Spacing Galvanized Barbed Wire 3mm Thick Pvc Wrap 0

Strand structure of barbed wire:


Barbed wire can be divided into single strand barbed wire and double strand barbed wire.
* Single strand barbed wire. It has the simplest structure, which contains single strand and barbs. Compared with the double strand barbed wires, it is much more economical and lighter weight. It is suitable for the common applications. But it is easy to destroy and cut, so it is not suitable for heavy duty applications.
* Double strand barbed wire. It is formed with two strand wires (line wires). The barbs are twisted between of the two wires and fastened onto the line wire. The double strand barbed wire can supply higher tensile strength to prevent cutting or destroying. It is suitable for the heavy duty applications, such as prisons, military sites and other places.



Galvanized barbed wire main features:



1) Sharp edge frightens intruders and thieves.
2) High stability, rigidity, and tensile strength to prevent cutting or destroying.
3) Anti-acid and alkali.
4) Harsh environment resistance.
5) Corrosion and rust resistance.
6) Available to combine with other fences for high level security barrier.
7) Convenient installation and uninstallation.
8) Easy to maintain.
9) Durable and long service life.





Galvanized barbed wire specifications:



Gauge of
Approximate Length per Kilo in Meter
Strand and Barb in B.W.G.
Barbs Spacing 3"
Barbs Spacing 4"
Barbs Spacing 5"
Barbs Spacing 6"
12x12
6.0617
6.759
7.27
7.6376
12x14
7.3335
7.9051
8.3015
8.5741
12-1/2x12-1/2
6.9223
7.719
8.3022
8.7221
12-1/2x14
8.1096
8.814
9.2242
9.562
13x13
7.9808
8.899
9.5721
10.0553
13x14
8.8448
9.6899
10.2923
10.7146
13-1/2x14
9.6079
10.6134
11.4705
11.8553
14x14
10.4569
11.659
12.5423
13.1752
14-1/2x14-1/2
11.9875
13.3671
14.3781
15.1034
15x15
13.8927
15.4942
16.6666
17.507
15-1/2x15-1/2
15.3491
17.1144
18.406
19.3386
Barbed distance :7.5-15/cm
Barbed length:1.5-3/cm

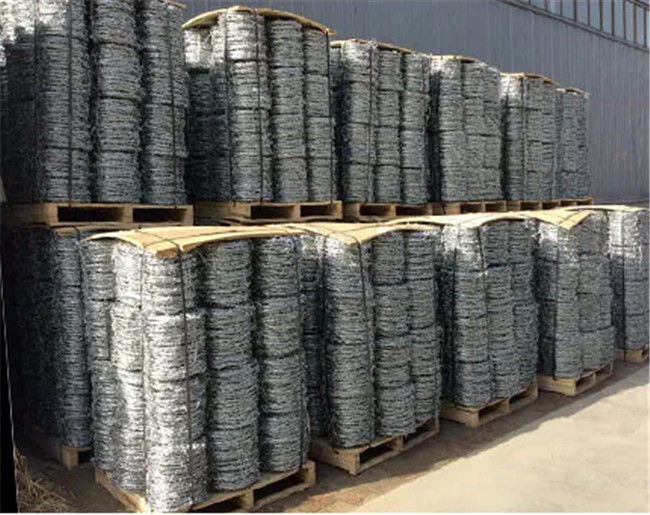

Packing method of barbed wire:



The barbed wire is commonly supplied in rolls. And there are so many barbs on the roll surface. For convenient loading, handling and transporting, we are equipped different handles for your choice. Additional, it is very safe for manual operation and will not hurt people when using it.

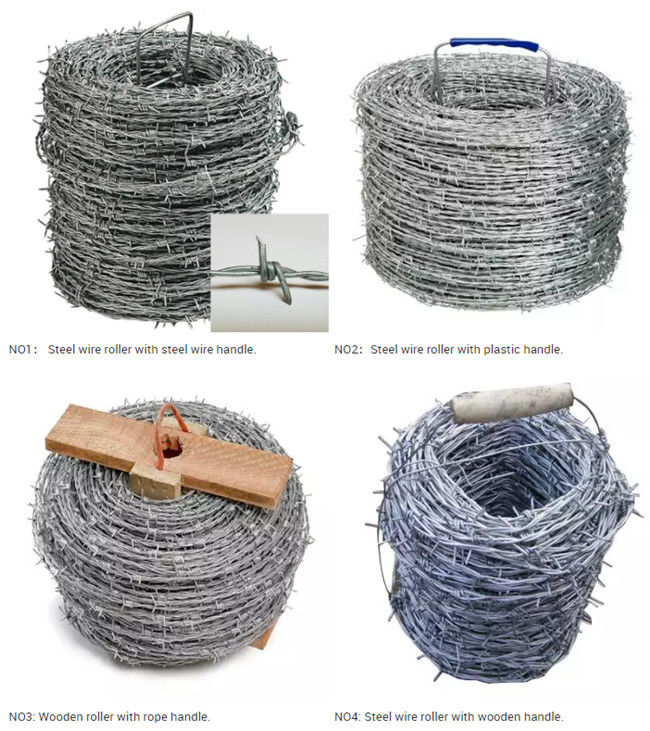

* Steel wire roller and steel wire handle.
* Steel wire roller and plastic handle.
* Steel wire roller and wooden handle.
* Wooden roller and rope handle.
Inside waterproof paper ,outside woven bag for barbed wire,Or according to your requirements



13cm Spacing Galvanized Barbed Wire 3mm Thick Pvc Wrap 1
