| MOQ: | 100 pcs |
| Price: | Negotiable |

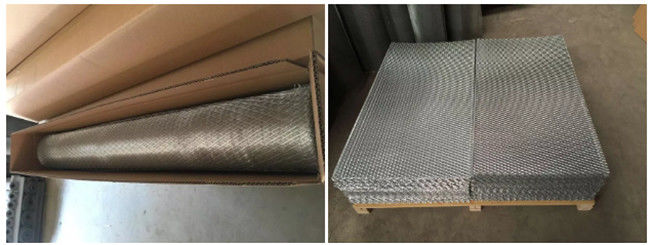

| Standard Packaging: | on pallet or wooden case, or as customer's requirement |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 pcs or rolls per day |

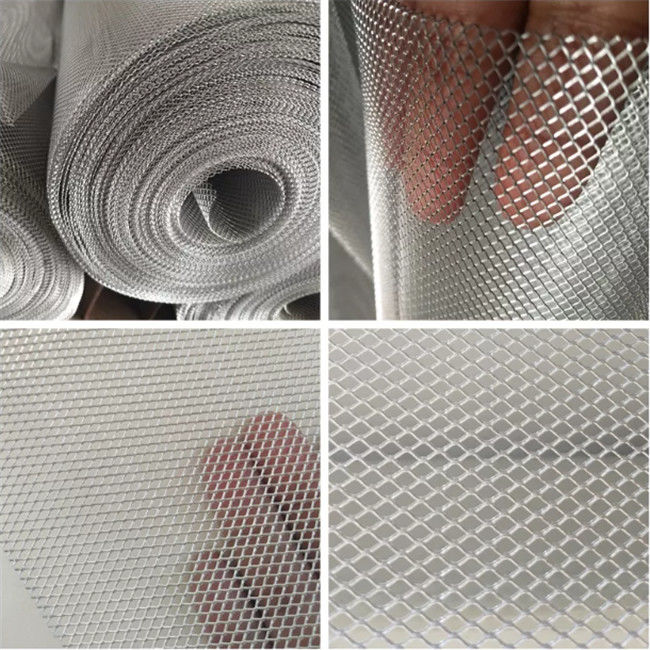

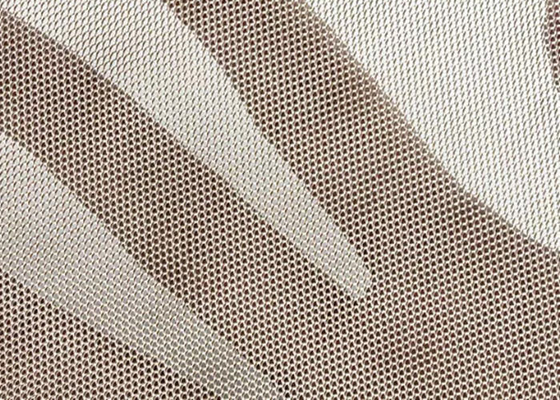

Micro expanded metal, a kind of special expanded metal, is made from a high quality fine steel sheet of aluminum, carbon steel, galvanized steel or stainless steel that is uniformly slit and stretched into diamond, hexagonal and other hole patterns you want. Different hole patterns can be used for different applications, which can permit the light, air, heat and sound passage.
The main technology of micro expanded metal is stretching and expanding, which will not lose any material, so it is much more economical alternative to perforated metal.
Expanded metal wire mesh Features:
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
|
|
