| MOQ: | 50 rolls |
| Price: | negotiable |
| Standard Packaging: | 1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton |
| Delivery Period: | 10 - 20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000 rolls per day |
standard wire diameter: 2.5mm
Thickness: 0.5mm
Coil type: single or cross
Blade style: various
Barbed length: 9mm-67mm
Barbed space: 26mm-102mm
Stand length per coil: 8m-16m
Outside diameter: 450-960mm
Number of loops: 33-102
Reference number: BTO-10 BTO-20 BTO-18 BTO-22 CBT-60 CBT65 etc
Razor barbed wire raw material:
Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
stainless steel core wire and blade

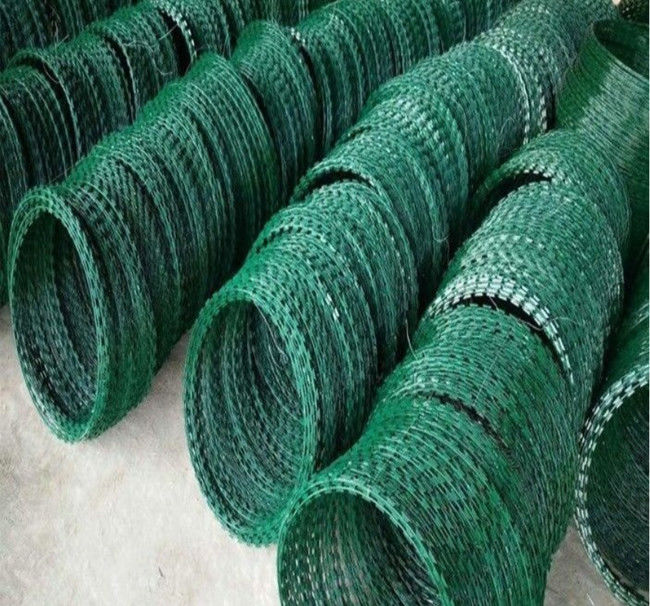

PVC coated core wire and blade
Hot-dipped galvanized core wire+stainless steel blade
Razor barbed wire characteristic:
excellent protective performance, beautiful, variety, construction rapidly and the effect of deter is good, extremely
difficult to cut (high tensile core wire), hard to climb, height of 1.2, 1.8, 2.1, and 2.4 meters, does away with the need for a
fence topping.
| Model | Thickness | Wire Diameter | Length | Width | Spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100± |
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450 mm | 33 | 8M | CBT-65 | Single Coil |
500 mm | 41 | 10M | CBT-65 | Single Coil |
700 mm | 41 | 10M | CBT-65 | Single Coil |
960 mm | 53 | 13M | CBT-65 | Single Coil |
500 mm | 102 | 16M | BTO-10,15,22 | Cross type |
600 mm | 86 | 14M | BTO-10,15,22 | Cross type |
700 mm | 72 | 12M | BTO-10,15,22 | Cross type |
800 mm | 64 | 10M | BTO-10,15,22 | Cross type |
960 mm | 52 | 9M | BTO-10,15,22 | Cross type |
|
|
