| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

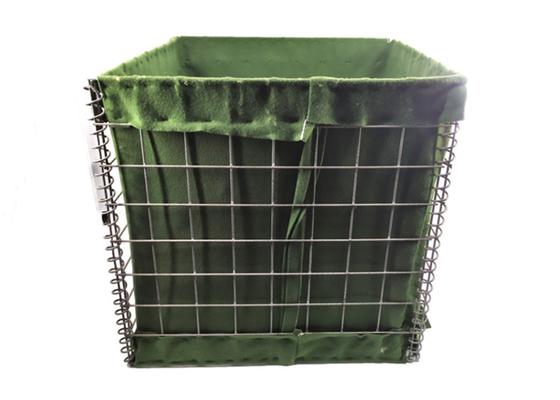

The hesco barrier is manufactured from welded zinc-aluminum coated steel wire mesh and jointed with vertical, helical-coil joints.The units are lined with a heavy-duty non-woven polypropylene geotextile. When jioned and filled, the system can be used to create of exceptional strength and structural integrity.

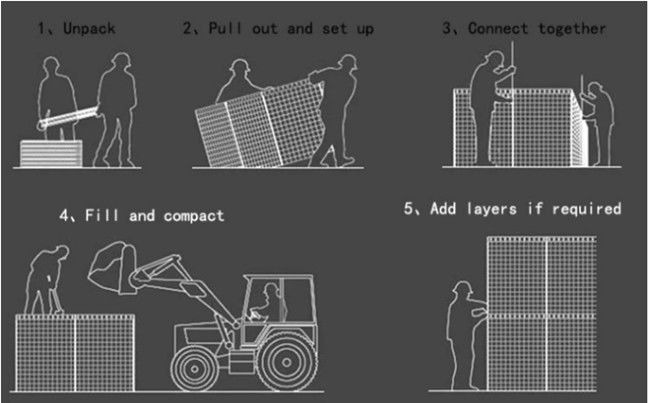

1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
Welded gabion mesh for for Military Blast Raw Material specifications:
Material | Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire) |
Wire Diameter | 4mm,5mm |
Spring Diameter | 4mm |
Mesh Hole | 3’’*3’’ or 75mm*75mm |
Panel Size | 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc. |
Geotextile | Usually 300g/m,other requirement can be customized. |
Finish | Hot-dipped Galvanized,Galfan Coated. |
PRODUCR ITEM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
HB MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) | 5+4=9 cells |
HB MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) | 2 cells |
HB MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) | 5+5=10 cells |
HB MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) | 5×2+5×2=20 cells |
HB MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
HB MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) | 5+4+4=13 cells |
HB MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) | 5+4=9 cells |
HB MIL9 | 39''(1.00M) | 30''(0.76M) | 30'(9.14M) | 6+6=12 cells |
HB MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(30.50M) | 5+5+5+5=20 cells |
HB MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) | 2 cells |
HB MIL12 | 84"(2.13M) | 42"(1.06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
HB MIL19 | 108''(2.74M) | 42"(1.06M) | 10'5'(3.18M) | 6 cells |
|
|
