| MOQ: | 50 PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

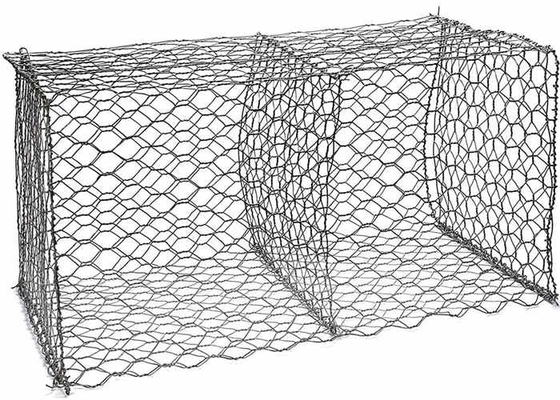

Gabion Mesh is also called gabion box, stone gabion mesh,gabion basket, hexagonal wire netting gabion and gabion wall etc.
According to its weave method, it includes hexagonal gabion mesh and welded gabion mesh. It also could be classified into gabion box, gabion mat( ), gabion mesh sack, hesco barrier (hesco bastion, flood barrier, security gabion) and system. Gabion mesh could be electro galvanized gabion mesh,hot dipped galvanized gabion mesh, zinc-aluminum-mischmetal (Zn-Al-MM) alloy gabion mesh (Galfan gabion mesh), polyester powder(PVC) coated gabion mesh and polyester powder(PVC) coated after galvanized gabion mesh etc.
For both of hexagonal gabion mesh and welded gabion mesh, field installation is quick and easy. In fact, welded type gabion’s installation time can be as much as 40% less than required by hexagonal type gabion. Unlike hexagonal type, Welded Gabion hold their shape better – they don’t bulge out when filled,they are easy to handle, which means more work,less labor and highter productivity.
1.Raw material:high quality low carbon steel wire or stainless steel wire etc..
2.Wire diameter: 2.00-4.00mm.
3.Mesh opening: 60X80mm,80X100mm,80X120mm, 50.8 x 50.8mm(2” x2”) and 76.2 x 76.2mm(3” x3”) etc..
4. Gabion sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m and 4m x 1m x 0.5m etc..
5.Surface treatment: galvanization, galfan,polyester powder coating(PVC coating), polyester powder coating(PVC coating) after galvanization and polyester powder coating(PVC coating) after galfan etc..
6.Different sizes are available as customer’s request.
Gabion Mesh Basket Applications:
1. Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8. Seaport project.
Gabion Mesh Basket Specifications:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
Max Wide Cut |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
4300 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
4300 |
|
Normal box size (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
|
1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 |
0.50 |
|
1.0x1.0x1.0 |
0 |
1.00 |
|
|
1.5x1.0x0.5 |
0 |
0.75 |
|
|
1.5x1.0x1.0 |
0 |
1.50 |
|
|
2.0x1.0x0.5 |
1 |
1.00 |
|
|
2.0x1.0x1.0 |
1 |
2.00 |
|
|
3.0x1.0x0.5 |
2 |
1.50 |
|
|
3.0x1.0x1.0 |
2 |
3.00 |
|
|
4.0x1.0x0.5 |
3 |
2.00 |
|
|
4.0x1.0x1.0 |
3 |
4.00 |
Packing & loading pictures:
Application:
|
|
