| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

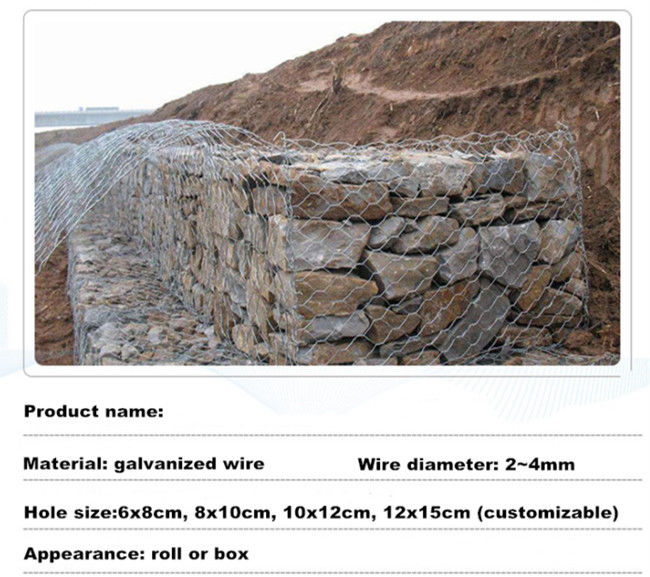

Gabion basket is also called gabion box, gabion wall, gabion cage, hexagonal gabion, gabion retaining wall and so on. It is a large cage made by hexagonal wire netting, it can be filled by stones, the wire material is high quality galvanized carbon steel, it is strong enough to protect road, river wall or forward operating bases.
|
Product Name
|
Gabion
|
|||
|
Hole Type
|
Hexagonal
|
|||
|
Production process
|
Three twist / Five twist
|
|||
|
Material
|
GI wire,PVC coated wire,galfan wire
|
|||
|
Wire Diameter
|
2.0mm-4.0mm
|
|||
|
Hole Size
|
60×80mm,80×100mm,100×120mm,120×150mm
|
|||
|
Gabion Size
|
2m×1m×0.5m,2m×1m×1m,3m×1m×0.5m,3m×1m×1m
4m×1m×0.5m,4m×1m×1m,Other sizes can be customized.
|
|||
Gabion Mesh Basket Usage:
It is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.
Gabion Mesh Basket Specifications:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
Max Wide Cut |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
4300 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
4300 |
| Gabion Baskets | River Mattresses |
|
1×1x1 - 1m³ 2×1x1 - 2m³ 3×1x1 - 3m³ 4×1x1 - 4m³ 1×1x0.5 - 0.5m³ 2×1x0.5 - 1m³ 3×1x0.5 - 1.5m³ 4×1x0.5 - 2m³ 6×2x0.5 - 6m³ 1.5×1x1 - 1.5m³ 2×0.5×0.5 - 0.5m³ 4×0.5×0.5 - 1m³ |
2×1x0.3 - 0.6m³ 3×1x0.3 - 0.9m³ 4×1x0.3 - 1.2m³ 6×2x0.17 - 2.04m³ 6×2x0.23 - 2.76m³ 6×2x0.30 - 3.60m³ |
Packing & loading pictures:
Application:
|
|
