| MOQ: | 50 PCS |
| Price: | negotiable |

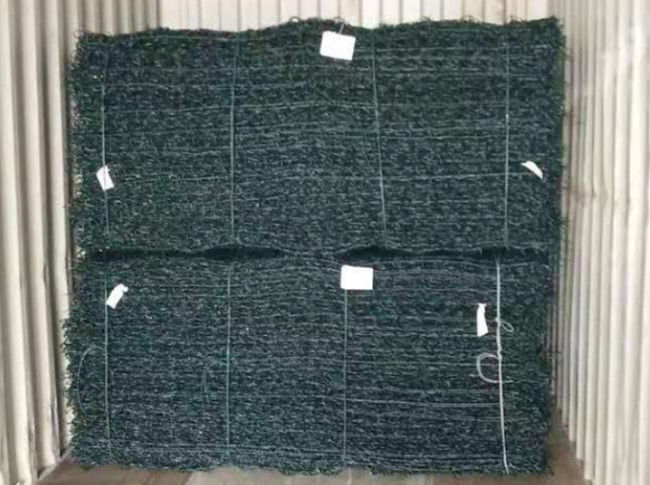

| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion Mesh is also called Product Name: Gabion Box,Gabion Basket, Stone Cage, , Hexagonal Wire Mesh, Gabion Mesh, PVC Coated Gabion Box, Galfan Gabion Basket, Stone Gabion, Gabion Cage, Gabion Retaining Wall.

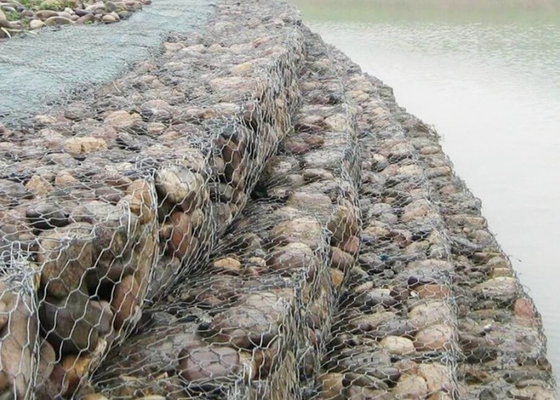

Gabion baskets are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The gabion baskets are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection
Gabion Wire Materials: Quality Galvanized Wire, Galfan Wire etc.
Gabion Basket sizes: 1x1x0.5m,1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x1m, 3x1x0.5m, 4x1x0.5m, 4x1x1m, 6x2x0.3m,Custom orders available.
Gabion Mesh Size:60*80mm, 80*100mm,100*120mm, 120*150mmCustom orders available.
Gabion basket surface Treatment: Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.
Gabion Mesh Basket Applications:
1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8. Seaport project.
Gabion Mesh Basket Specifications:
|
Mesh size and wire thickness
|
|||
|
Gabion Boxes
80x100mm
100x120mm
|
Mesh Wire Dia.
|
2.70mm
|
Zinc coating: >260g/m2
|
|
Edge Wire Dia.
|
3.40mm
|
Zinc coating: >275g/m2
|
|
|
Tie Wire Dia.
|
2.20mm
|
Zinc coating: >240g/m2
|
|
|
Mattress
60x80mm |
Mesh Wire Dia.
|
2.20mm
|
Zinc coating: >240g/m2
|
|
Edge Wire Dia.
|
2.70mm
|
Zinc coating: >260g/m2
|
|
|
Tie Wire Dia.
|
2.20mm
|
Zinc coating: >240g/m2
|
|
|
Special sizes are available.
|
Mesh Wire Dia.
|
2.00~4.00mm
|
|
|
Edge Wire Dia.
|
2.70~4.00mm
|
||
|
Tie Wire Dia.
|
2.00~2.20mm
|
||
|
Normal box size (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
|
1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 |
0.50 |
|
1.0x1.0x1.0 |
0 |
1.00 |
|
|
1.5x1.0x0.5 |
0 |
0.75 |
|
|
1.5x1.0x1.0 |
0 |
1.50 |
|
|
2.0x1.0x0.5 |
1 |
1.00 |
|
|
2.0x1.0x1.0 |
1 |
2.00 |
|
|
3.0x1.0x0.5 |
2 |
1.50 |
|
|
3.0x1.0x1.0 |
2 |
3.00 |
|
|
4.0x1.0x0.5 |
3 |
2.00 |
|
|
4.0x1.0x1.0 |
3 |
4.00 |

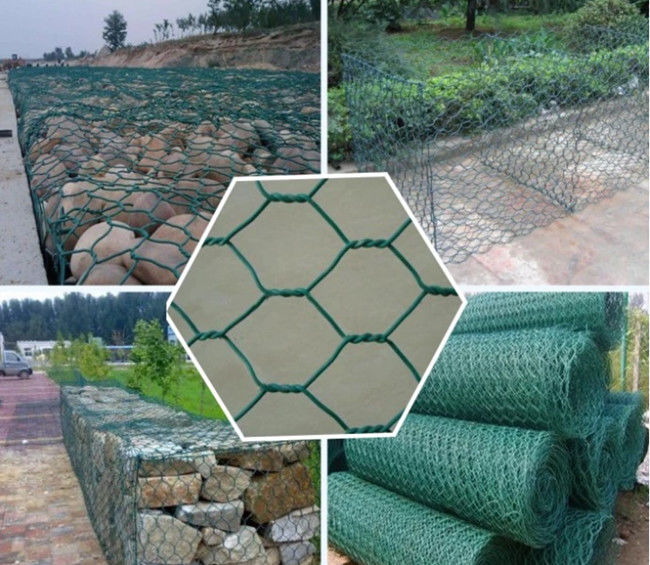

Application:
|
|
