10x10 500mpa Steel Concrete Reinforcement Welded Wire Mesh DIN488 High Strength

Name: 10x10 500mpa Steel Concrete Reinforcement Welded Wire Mesh DIN488 High Strength
Brand: HBGB
SKU: GB-005
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (166 reviews)

MOQ:	100pcs
Price:	negotiable
Standard Packaging:	in bundle or bulk
Delivery Period:	10-20 days
Payment Method:	L/C, T/T
Supply Capacity:	3000 pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-005

Product Name:

Concrete Reinforcement Welded Wire Mesh

Material:

Q235

Type:

Welded Wire Mesh

Pitch:

100x100mm, 100x200mm, 150x250mm

Wire Diameter:

4-9mm

Opening Shape:

Square, Rectangle

Standard:

DIN488 Or AS/NZS 4671:2001

Mesh Dimension:

6000x2400mm, 5800x2200mm Or Customized

Sample:

Available

Application:

Construction Wire Mesh

Minimum Order Quantity:

100pcs

Price:

negotiable

Packaging Details:

in bundle or bulk

Delivery Time:

10-20 days

Payment Terms:

L/C, T/T

Supply Ability:

3000 pcs per day

High Light:

10x10 500mpa steel mesh for concrete

Concrete Reinforcement Welded Wire Mesh 10x10 500mpa

DIN488 concrete reinforcing mesh 500mpa

Product Description

high strength 10x10 concrete steel reinforcement welded wire mesh

Concrete Reinforcement Welded Wire Mesh Introduction:

10x10 concrete reinforcing welded wire mesh is also called Construction Reinforced Concrete Mesh, Concrete Reinforcing Mesh,Welded Steel Bar Mesh,Steel Concrete Mesh.

10x10 concrete reinforcing welded wire mesh is longitudinal reinforcement and transverse reinforcement were arranged in a certain interval and at right angles to each other, all the intersections are welded together.

Concrete Reinforcement Welded Wire Mesh Feature:

Our reinforcing mesh is with a 500mpa tensile strength. The wire used in our reinforcing mesh has a ribbed profile. This ribbed profile creates improves bonding to concrete, which when compared to smooth wire profiles, minimizes any concrete cracking that may occur as a result of concrete shrinkage.

1. Lower the cost of the project.

2. Speed up the construction progress.

3. Ensure the quality of the project.

4. Anti-cracking performance,etc.

Concrete Reinforcement Welded Wire Mesh Applications:

· Concrete footpaths

· Industrial and commercial ground slabs

· Precast Panel construction

· Residential slabs and footings

Concrete Reinforcement Welded Wire Mesh Specifications:

NO.	Types	Wire Spacing		Wire Diameter		Sheet Dimensions/m	Weight Per Sheet/kg
NO.	Types	Main/mm	Cross/mm	Main/mm	Cross/mm	Sheet Dimensions/m	Weight Per Sheet/kg
1	A98	200	200	5	5	2.15x5.00	16.7
2	A142			6	6		24.1
3	A193			7	7		32.8
4	A252			8	8		43.0
5	A393			10	10		67.1
6	B503	100	200	8	8		64.7
7	B785	100	200	10	10		89.1
8	A98'	200	200	5	5	1.80x3.00	8.3
9	A142'			6	6	1.80x3.00	12.0
10	A252'			8	8	1.75x3.00	21.0
11	A393'			10	10	1.75x3.00	32.9
12	Q92	150	150	4.2	4.2	2.15x5.00	15.9
13	Q131			5	5		22.5
14	Q188			6	6		32.4
15	Q257			7	7		39.7
16	R92	150	250	4.2	4.2		12.8
Note: 1 Special size can be customized according to customers requirements 2 Packing: waterproof paper in rolls or according to customers requirements

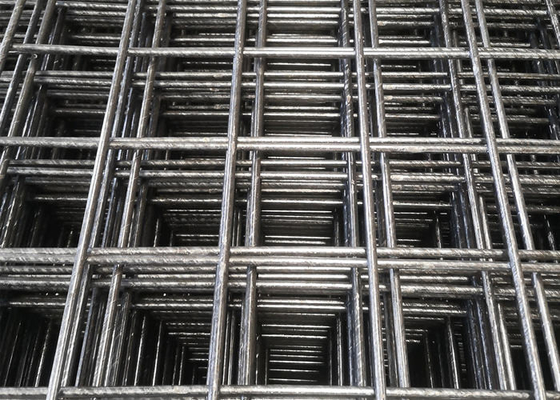

Pictures of product:

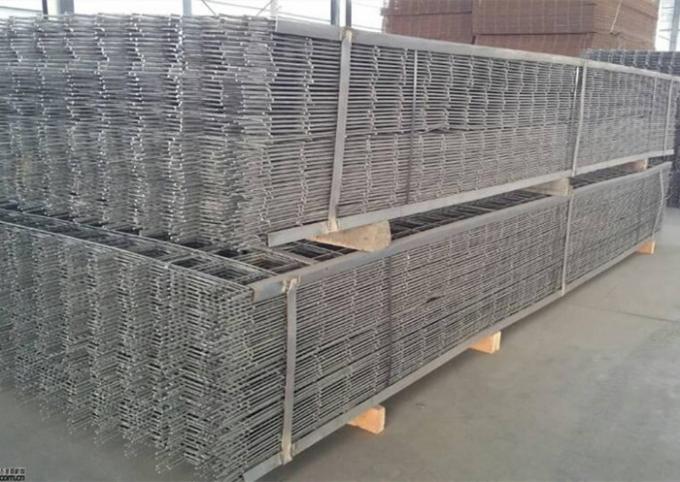

10x10 500mpa Steel Concrete Reinforcement Welded Wire Mesh DIN488 High Strength 0

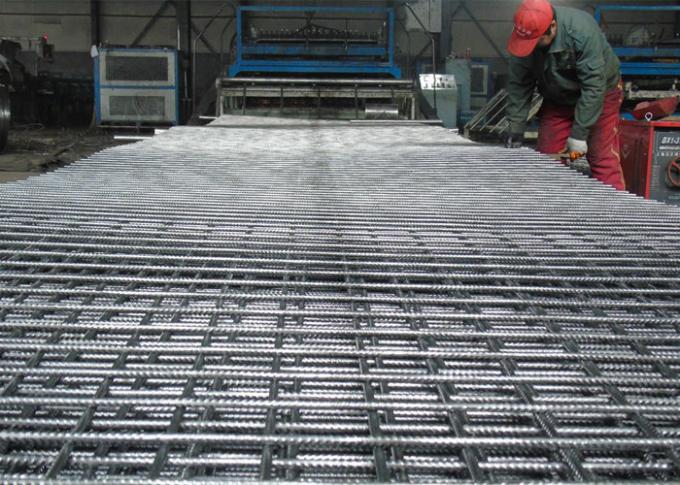

10x10 500mpa Steel Concrete Reinforcement Welded Wire Mesh DIN488 High Strength 1
