100x100 150x150 Concrete Welded BRC Wire Mesh 8mm High Tensile

Name: 100x100 150x150 Concrete Welded BRC Wire Mesh 8mm High Tensile
Brand: HBGB
SKU: GB-005
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (189 reviews)

MOQ:	100pcs
Price:	negotiable
Standard Packaging:	in bundle or bulk
Delivery Period:	10-20 days
Payment Method:	L/C, T/T
Supply Capacity:	3000 pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-005

Product Name:

Reinforcing Concrete Welded Wire Mesh

Material:

Q235, Q195

Process Of Mesh:

Welded

Surface Treatment:

Without Treatment

Mesh Type:

Cold Rolled Ribbed Bar Mesh,hot Rolled Steel Bar Mesh Etc

Pitch:

75x75mm, 50x50mm 100x100mm, 150x150mm Or As Your Request

Wire Diameter:

4-12 Mm

Mesh Dimension:

Customized

If Factory:

Real Factory

Usage:

Concrete Reinforcing Application

Minimum Order Quantity:

100pcs

Price:

negotiable

Packaging Details:

in bundle or bulk

Delivery Time:

10-20 days

Payment Terms:

L/C, T/T

Supply Ability:

3000 pcs per day

High Light:

150x150 brc wire mesh 100x100

150x150 100x100 concrete welded wire mesh

brc mesh 8mm high tensile 100x100

Product Description

sri lanka 4mm 8mm 150x150 brc rebar reinforcing concrete welded wire mesh

Concrete Reinforcement Welded Wire Mesh Description:

Concrete Reinforcing Mesh also known as steel reinforcing mesh, welded wire fabric, ribbed steel bars welded mesh and so on. Be made from cold reduced Wire or cold rolled ribbed bars(CRB550) , It is in the same or different diameters of the vertical and horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.

It is used to provide tensile strength and crack control to structural concrete elements.

Concrete Reinforcement Welded Wire Mesh Details:

Diameter of wire rods Ø6 ~ Ø13
Size of wire mesh (w x L) 1.2 ~ 2.4 x 6m (up to 12m length)
Spacing 100 ~ 250mm

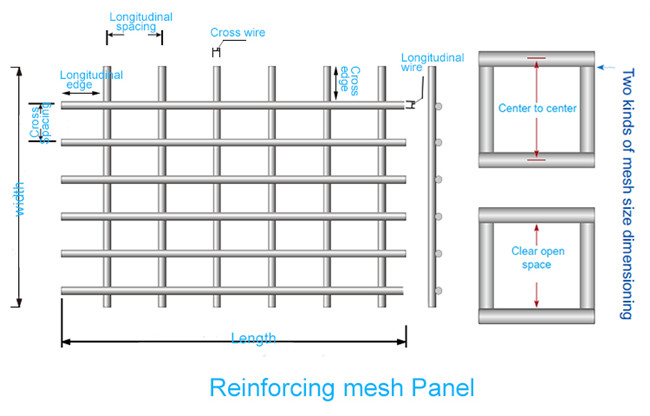

Drawing of Concrete Reinforcement Welded Wire Mesh:

100x100 150x150 Concrete Welded BRC Wire Mesh 8mm High Tensile 0

Concrete Reinforcement Welded Wire Mesh Specifications:

NO.	PRODUCT (Sheet 2.4x6m)	MAIN WIRE		CROSS WIRE		MASS PER UNIT AREA	MASS PER PIECE
NO.	PRODUCT (Sheet 2.4x6m)	Size (mm)	Spacing (mm)	Size (mm)	Spacing (mm)	(kg/m2)	(kg/pc)
	SQUARE MESH
1	@100	4	100	4	100	1.97	28.41
2		5	100	5	100	3.08	44.40
3		6	100	6	100	4.44	63.92
4		7	100	7	100	6.04	87.00
5		8	100	8	100	7.89	113.64
6		9	100	9	100	9.99	143.83
7		10	100	10	100	12.33	177.57
8		11	100	11	100	14.92	214.85
9		12	100	12	100	17.76	255.69
10	@150	4	150	4	150	1.32	18.94
11		5	150	5	150	2.06	29.59
12		6	150	6	150	2.96	42.61
13		7	150	7	150	4.03	58.00
14		8	150	8	150	5.26	75.76
15		9	150	9	150	6.66	95.89
16		10	150	10	150	8.22	118.38
17		11	150	11	150	9.95	143.24
18		12	150	12	150	11.84	170.47
19	@200	4	200	4	200	0.99	14.20
20		5	200	5	200	1.54	22.19
21		6	200	6	200	2.22	31.97
22		7	200	7	200	3.02	43.50
23		8	200	8	200	3.95	56.82
24		9	200	9	200	4.99	71.91
25		10	200	10	200	6.17	88.78
26		11	200	11	200	7.46	107.42
27		12	200	12	200	8.88	127.84
28	@250	4	250	4	250	0.79	11.36
29		5	250	5	250	1.23	17.76
30		6	250	6	250	1.78	25.57
31		7	250	7	250	2.42	34.80
32		8	250	8	250	3.16	45.46
33		9	250	9	250	4.00	57.53
34		10	250	10	250	4.93	71.02
35		11	250	11	250	5.97	85.94
36		12	250	12	250	7.10	102.28

Concrete Reinforcement Welded Wire Mesh Applications:

· Concrete footpaths

· Industrial and commercial ground slabs

· Precast Panel construction

· Residential slabs and footings

100x100 150x150 Concrete Welded BRC Wire Mesh 8mm High Tensile 1

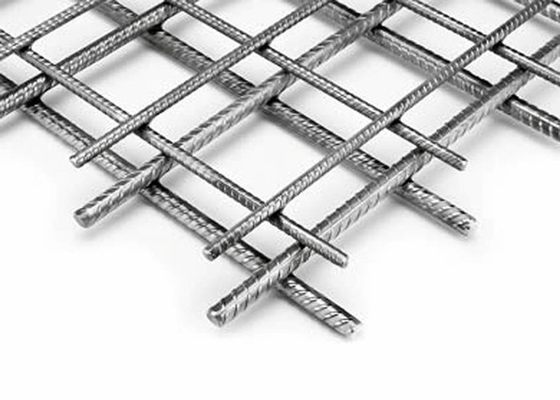

Pictures of product:

100x100 150x150 Concrete Welded BRC Wire Mesh 8mm High Tensile 2

100x100 150x150 Concrete Welded BRC Wire Mesh 8mm High Tensile 3
