HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar
  • name
  • name

HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar

MOQ: 100pcs
Price: negotiable
Standard Packaging: in bundle or bulk
Delivery Period: 10-20 days
Payment Method: L/C, T/T
Supply Capacity: 3000 pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HBGB
Certification
ISO 9001
Model Number
GB-005
Product Name:
Reinforcing Concrete Welded Wire Mesh
Material:
Steel Bar
Steel Bar Type:
Ribbed Steel Bar
Process Of Mesh:
Welded
Spacing:
100, 150, 200, 250 Mm
Diameter Of Rod:
Ø6 ~ Ø13
Tensile Strength:
460 ~ 650 Mpa
Minimum Shear Strength At Intersection:
250 MPa
Size Of Wire Mesh (w X L):
Width:1.2 ~ 2.4; Length 6m (up To 12m Length)
Mesh Type:
Cold Rolled Ribbed Bar Mesh,hot Rolled Steel Bar Mesh Etc
Minimum Order Quantity:
100pcs
Price:
negotiable
Packaging Details:
in bundle or bulk
Delivery Time:
10-20 days
Payment Terms:
L/C, T/T
Supply Ability:
3000 pcs per day
High Light:

6 gauge concrete reinforcement welded wire mesh 250mm

,

welded reinforcing mesh 25cm

,

6 gauge wire mesh for concrete 250mm

Product Description

6 gauge ribbed steel bar concrete reinforcement welded wire mesh





Concrete Reinforcement Welded Wire Mesh Description:



  • Wire mesh is made from cold drawn high yield strength wire rods.
  • Wire mesh is produced by the automatic welding machine ensuring consistent mesh spacing.



Concrete Reinforcement Welded Wire Mesh Detailed Information:



  • Diameter of wire rods Ø6 ~ Ø13
  • Size of wire mesh (w x L) 1.2 ~ 2.4 x 6m (up to 12m length)
  • Spacing 100 ~ 250mm

Concrete Reinforcement Welded Wire Mesh Technical information:



  • Tensile strength of wire rods 460 ~ 650 Mpa
  • Minimum shear strength at intersection 250 MPa



Standards of Concrete Reinforcement Welded Wire Mesh:



British Standard BS4483:1998 - Welded mesh used for reinforcement
Australian Standard AS/NZ/4671 - Cold drawn wire rods used for reinforcement
American Standard ASTM 185:1994 - Welded mesh made from deformed bars or wire rods used for reinforcement
Vietnamese Standard TCVN 267:2002 - Welded mesh used for reinforcement



Concrete Reinforcement Welded Wire Mesh Specifications:





NO.

PRODUCT

(Sheet 2.4x6m)

 MAIN WIRE CROSS WIRE MASS PER UNIT AREA MASS PER PIECE
Size
(mm)		 Spacing
(mm)		 Size
(mm)		 Spacing
(mm)		 (kg/m2) (kg/pc)
  SQUARE MESH
1 @100 4 100 4 100 1.97 28.41
2   5 100 5 100 3.08 44.40
3   6 100 6 100 4.44 63.92
4   7 100 7 100 6.04 87.00
5   8 100 8 100 7.89 113.64
6   9 100 9 100 9.99 143.83
7   10 100 10 100 12.33 177.57
8   11 100 11 100 14.92 214.85
9   12 100 12 100 17.76 255.69
10 @150 4 150 4 150 1.32 18.94
11   5 150 5 150 2.06 29.59
12   6 150 6 150 2.96 42.61
13   7 150 7 150 4.03 58.00
14   8 150 8 150 5.26 75.76
15   9 150 9 150 6.66 95.89
16   10 150 10 150 8.22 118.38
17   11 150 11 150 9.95 143.24
18   12 150 12 150 11.84 170.47
19 @200 4 200 4 200 0.99 14.20
20   5 200 5 200 1.54 22.19
21   6 200 6 200 2.22 31.97
22   7 200 7 200 3.02 43.50
23   8 200 8 200 3.95 56.82
24   9 200 9 200 4.99 71.91
25   10 200 10 200 6.17 88.78
26   11 200 11 200 7.46 107.42
27   12 200 12 200 8.88 127.84
28 @250 4 250 4 250 0.79 11.36
29   5 250 5 250 1.23 17.76
30   6 250 6 250 1.78 25.57
31   7 250 7 250 2.42 34.80
32   8 250 8 250 3.16 45.46
33   9 250 9 250 4.00 57.53
34   10 250 10 250 4.93 71.02
35   11 250 11 250 5.97 85.94
36   12 250 12 250 7.10 102.28



Advantages of concrete reinforcement welded wire mesh:

  • Shorten implementation time; thereby gaining economic advantages
  • Replace manual production with higher productivity
  • Customize in accordance with customers requests
  • Reduce losses and quality deterioration of steel materials
  • Ensure the progress of projects
  • Enhance the ease of transportation, installation and replacement

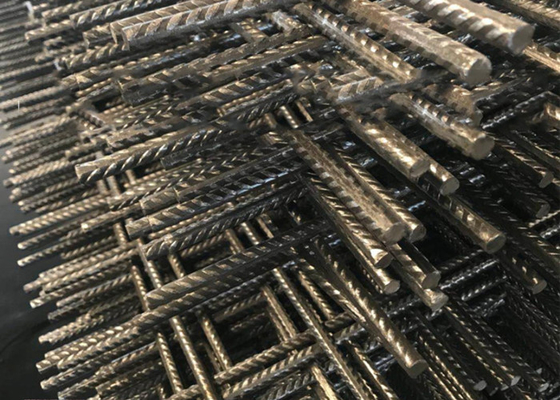

Pictures of product:





HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar 0

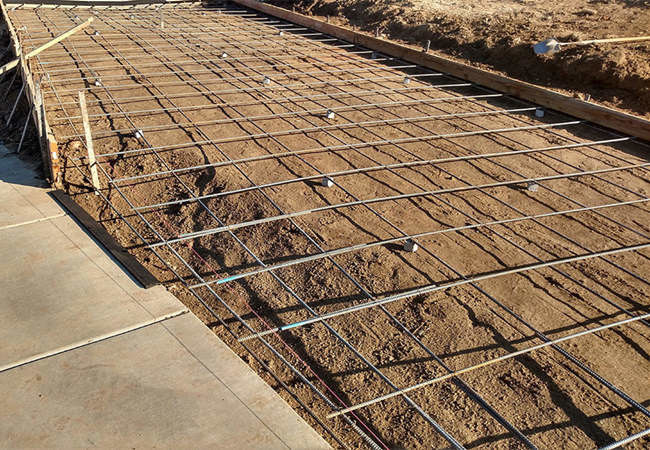

Application:



HBGB Concrete Reinforcement Welded Wire Mesh 6 Gauge 250mm Ribbed Steel Bar 1
