| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle or bulk |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |
Concrete Reinforcement Welded Wire Mesh Introduction:
Steel Reinforcement welded wire mesh panels are made of ribbed steel bars bonded via spot welding for slab and wall constructions.
Ribbed steel rod used can improve bonding to the concrete and minimize any concrete cracking that may occur as a result of concrete shrinkage.
Also the feature enables the ribbed steel weld mesh widely used as building materials for block slab structure reinforcing.
1) Cold-rolled steel ribbed rebar
2) Cold-rolled steel round rebar
3) Hot-rolled steel ribbed rebar
Rebar dia: 6mm,8mm,10mm
Width: 2200mm, 2300mm, 2400mm
Length: 5800mm, 6000mm
Mesh Hole: 100mm x100mm,150mm x150mm,200mm x200mm
Concrete Reinforcement Welded Wire Mesh Specifications:
1) German standard DIN 488( Size: 2150x5000mm)
| Ref No. | Std Unit | Longitudinal Wires(mm) | Cross Wires(mm) | Pitch of wire(mm) | Mass(Kg) | Mass(Kg/m2) |
| Q131 | Sheet | 5 | 5 | 150 @ 150 | 22.476 | 2.091 |
| Q188 | Sheet | 6 | 6 | 150 @ 150 | 32.401 | 3.014 |
| Q221 | Sheet | 6.5/5.0 | 6.5 | 150 @ 150 | 33.707 | 3.136 |
| Q295 | Sheet | 7.5/5.5 | 7.5 | 150 @ 150 | 44.245 | 4.116 |
| Q378 | Sheet | 8.5/6 | 8.5 | 150 @ 150 | 66.659 | 5.157 |
2) Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400m)
| Ref No. | Std Unit | Longitudinal Wires(mm) | Edge Wires(mm) | Cross Wires(mm) | Mass(Kg) |
| SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
| SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
| SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
| SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
| SL72 (F72) | Sheet | 6.75 @ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
| SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
| SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 |
21
|

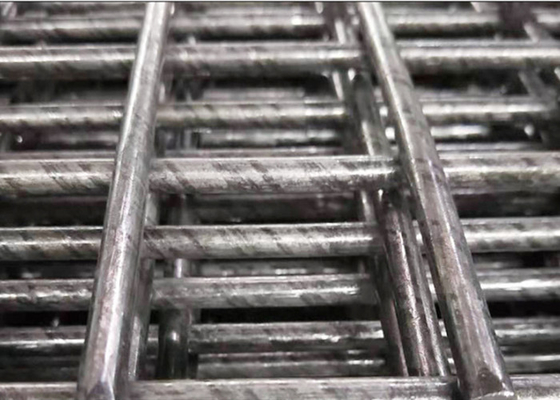

Pictures of product:
|
|
