| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | Steel Pallet or customized |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000 pcs per day |
Steel bar grating is a good choice for strength, safety, long-term cost and durability. Bar Grating consists of a series of bearing bars, welded (or otherwise joined) at various intervals to perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes; bar sizes, and material types.
Stair treads are the horizontal sections of stairs that serve as the step surface of each step.
Bearing Bars – Load carrying main elements made from steel, aluminum, or stainless steel, extending in the direction of the grating span.
Bearing Bar Centers – The distance center-to-center of the bearing bars.
Carriers – Flats or angles which are welded to the grating panel and nosing of a stair tread and are bolted to a stair stringer to support the tread.
Clear Opening – The distance between faces of bearing bars in rectangular gratings, or between a bent connecting bar and a bearing bar in a riveted grating.
Cross Bars – The connecting bars which extend across the bearing bars, usually perpendicular to them. They may be bent into a corrugated or sinuous pattern and, where they intersect the bearing bars, are welded, forged or mechanically locked to them.
Cross Bar Centers – The distance center-to-center of the cross bars.
Untreated, Painting or Hot Dipped Galvanizing

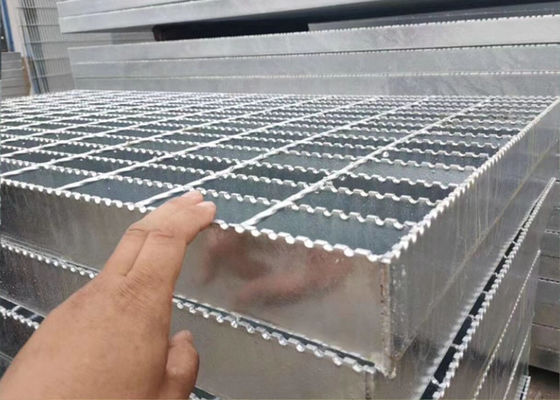

| Product Name | Serrated Steel Grating |
| Material | Low Carbon Steel/Stainless Steel
|
| Grade | CN:Q235,Q345, US:A36,UK:43A |
| Standard | CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS |
| Certification | CE, GOST, ISO9001, ISO14001, HSE |
| Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| Cross bar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request |
| Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement. |
| Galvanization Standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Color | Silver/Black |
| Application | petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing |
* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads
|
|
