| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | Steel Pallet or customized |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000 pcs per day |
Steel plate by the bearing flat steel bar in accordance with certain spacing and cross arrangement,the welded info a metal products with square lattice in the middle;a steel lattice plate is mainly used to make steel structure platform board,ditch cover plate,steel ladder step plate,building ceiling etc.Lattice steel plate applied to alloy building materials,power station,boiler,shipbuilding,petrochemical,chemical and general industrial buildings, municipal construction and other industrial, with light ventilation,skid resistance,strong bearing capacity.beautiful and durable,easy to clean,convenient installation and other advantages.

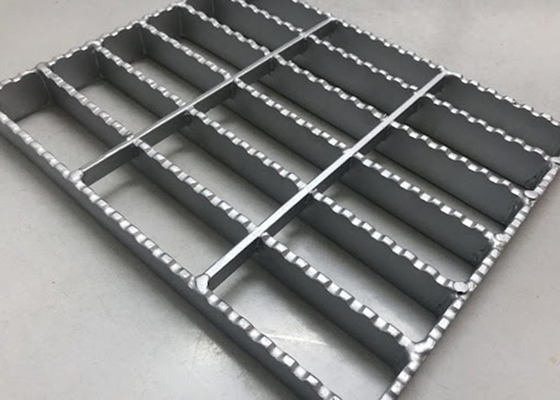

serrated hot dip galvanized grating
specification:253/30/100
Twisted cross bar:6*6mm .pitch: 100mm
size:3m*1m
1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of
the flat bar;
4. Finish: Hot dipped galvanized.
| Product Name | Serrated Steel Grating |
| Material | Low Carbon Steel/Stainless Steel
|
| Grade | CN:Q235,Q345, US:A36,UK:43A |
| Standard | CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS |
| Certification | CE, GOST, ISO9001, ISO14001, HSE |

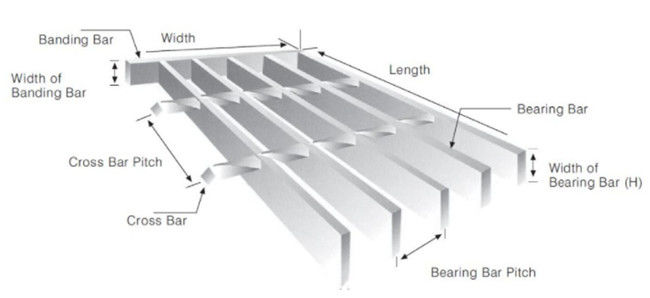

| Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| Cross bar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request |
| Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement. |
| Galvanization Standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Color | Silver/Black |

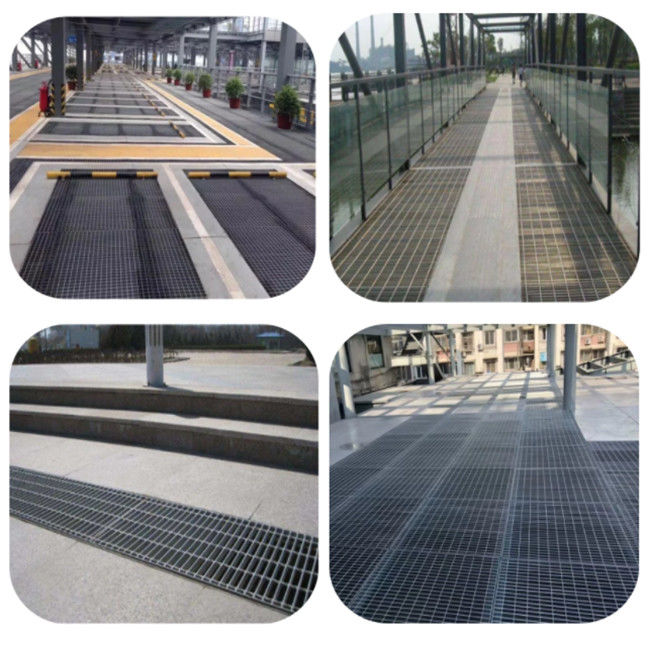

| Application | petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing |
* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads
|
|
