| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | Steel Pallet or customized |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000 pcs per day |

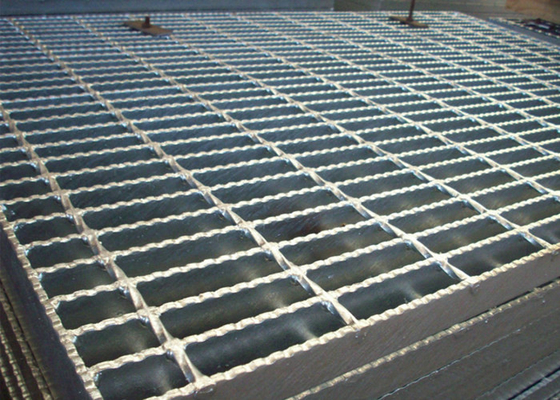

Steel Grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other
features. The hot dipped zinc coating gives the product excellent anti-corrosion.
Galvanized serrated bar grating size:
1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of
the flat bar;
4. Finish: Hot dipped galvanized.
| Product Name | Serrated Steel Grating |
| Material | Low Carbon Steel/Stainless Steel
|
| Grade | CN:Q235,Q345, US:A36,UK:43A |
| Standard | CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS |
| Certification | CE, GOST, ISO9001, ISO14001, HSE |
| Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| Cross bar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request |
| Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement. |
| Galvanization Standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Color | Silver/Black |
| Application | petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing |
-flooring steel gratings
-stair treads
-sun shades
-drain covers
-security screen
-manhole covers
-mezzanine flooring
-earth mats
-shelving
-Stanchions (hand rails)
-trench covers
|
|
