| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | bulk packing, in bundle or by pallet |
| Delivery Period: | 15-25days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |

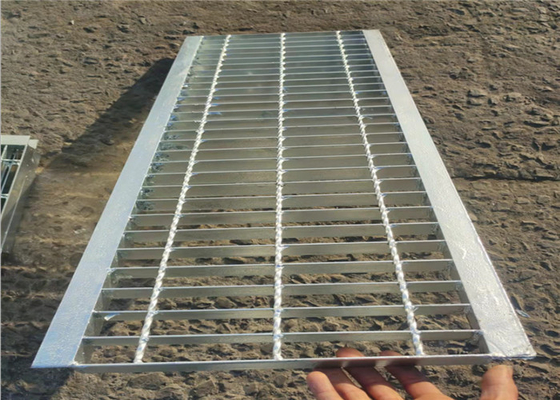

Steel plate by the bearing flat steel bar in accordance with certain spacing and cross arrangement,the welded info a metal products with square lattice in the middle;a steel lattice plate is mainly used to make steel structure platform board,ditch cover plate,steel ladder step plate,building ceiling etc.Lattice steel plate applied to alloy building materials,power station,boiler,shipbuilding,petrochemical,chemical and general industrial buildings, municipal construction and other industrial, with light ventilation,skid resistance,strong bearing capacity.beautiful and durable,easy to clean,convenient installation and other advantages.
|
Material
|
Q235,SS 304,SS316
|
|
Bearing type
|
Flat bar,serrated bar
|
|
Bearing bar
|
30mm high x 3mm thickness or 32mm high x 5mm thickness
30mm,40mm,60mm pitch
|
|
Cross bar
|
6x6mm; 50mm,100mm pitch
|
|
Panel size
|
1x6m,or as your request
|
|
Edge
|
with bound end or without
|
Plain bar grating specifications:
| No. | Terms | Description |
|
1
|
Material | Low carbon,middle carbon,stainless steel |
|
2
|
Bearing bar size |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10,100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',
1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',
1 1/2'x1/8' etc.
|
| 3 | Bearing bar pitch |
15,20,25,30,33,35,38,40,50,60,80,90mm |
| 4 | Cross bar pitch |
24-200mm |
| 5 | Surface treatment |
Hot dipped galvanized,painted,self-color, |
| 6 | Grating standard |
YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985 |
| 7 | Bearing bar type |
F,I ,S,IS type |
| 8 | Application |
Floor walkway,industrial platform,stair tread,metal ceiling |
| 9 | HS Code |
73089000 |
| 10 | Package |
Pallets in containers packed by steel strap and worthy sea shipping |
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Application of Plain steel bar grating:
Steel grating can be widely used in various industrial buildings, such as metallurgy, building materials, power stations, boilers, ship building, , municipal construction, etc.
|
|
| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | bulk packing, in bundle or by pallet |
| Delivery Period: | 15-25days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |
Steel plate by the bearing flat steel bar in accordance with certain spacing and cross arrangement,the welded info a metal products with square lattice in the middle;a steel lattice plate is mainly used to make steel structure platform board,ditch cover plate,steel ladder step plate,building ceiling etc.Lattice steel plate applied to alloy building materials,power station,boiler,shipbuilding,petrochemical,chemical and general industrial buildings, municipal construction and other industrial, with light ventilation,skid resistance,strong bearing capacity.beautiful and durable,easy to clean,convenient installation and other advantages.
|
Material
|
Q235,SS 304,SS316
|
|
Bearing type
|
Flat bar,serrated bar
|
|
Bearing bar
|
30mm high x 3mm thickness or 32mm high x 5mm thickness
30mm,40mm,60mm pitch
|
|
Cross bar
|
6x6mm; 50mm,100mm pitch
|
|
Panel size
|
1x6m,or as your request
|
|
Edge
|
with bound end or without
|
Plain bar grating specifications:
| No. | Terms | Description |
|
1
|
Material | Low carbon,middle carbon,stainless steel |
|
2
|
Bearing bar size |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10,100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',
1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',
1 1/2'x1/8' etc.
|
| 3 | Bearing bar pitch |
15,20,25,30,33,35,38,40,50,60,80,90mm |
| 4 | Cross bar pitch |
24-200mm |
| 5 | Surface treatment |
Hot dipped galvanized,painted,self-color, |
| 6 | Grating standard |
YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985 |
| 7 | Bearing bar type |
F,I ,S,IS type |
| 8 | Application |
Floor walkway,industrial platform,stair tread,metal ceiling |
| 9 | HS Code |
73089000 |
| 10 | Package |
Pallets in containers packed by steel strap and worthy sea shipping |
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Application of Plain steel bar grating:
Steel grating can be widely used in various industrial buildings, such as metallurgy, building materials, power stations, boilers, ship building, , municipal construction, etc.
