| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

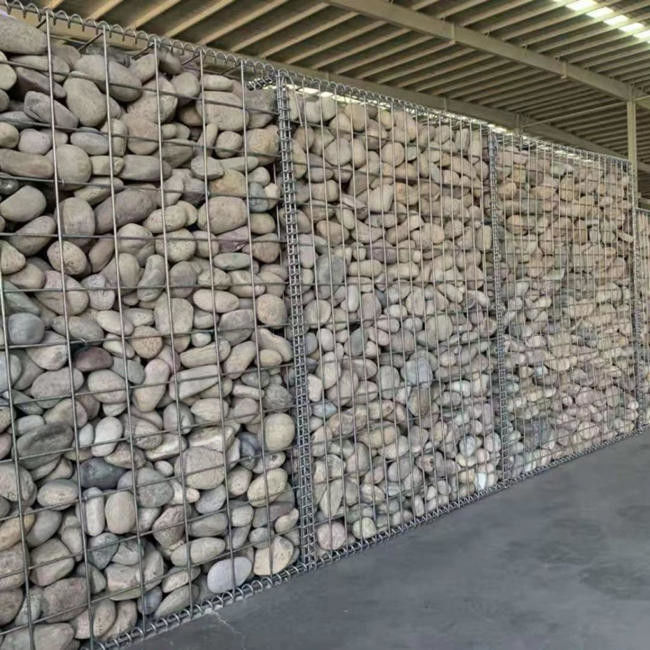

Welded gabion mesh is widely used in retaining wall structure, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are more quicker and simpler to be installed than woven mesh gabions.
|

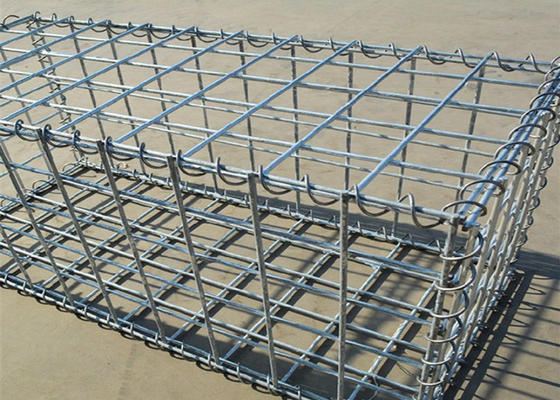

Type of welded gabion
|
Wire diameter | Mesh size | Gabion size |
| Galvanized | 3-5mm |
50x50,75x75,50x100mm
|
customized |
| PVC coated | 3.0/3.8mm | 50x50,75x75,50x100mm | customized |
| 95% Zic + 5Al | 3-5mm | 50x50,75x75,50x100mm | customized |
|
Nominal Box sizes
(m)
|
No. of diaphragms
(no.)
|
Capacity per box
(m3)
|
Corner stiffeners
(piece)
|
| 1.0x1.0x0.5 | Nil | 0.50 | 2 |
| 1.0x1.0x1.0 | Nil | 1.00 | 4 |
| 1.5x1.0x0.5 | Nil | 0.75 | 4 |
| 1.5x1.0x1.0 | Nil | 1.50 | 4 |
| 2.0x1.0x0.5 | 1 | 1.00 | 4 |
| 2.0x1.0x1.0 | 1 |
2.00
|
8 |
| 3.0x1.0x0.5 | 2 | 1.50 | 6 |
| 3.0x1.0x1.0 | 2 | 3.00 | 12 |
| 4.0x1.0x0.5 | 3 | 2.00 | 8 |
| 4.0x1.0x1.0 | 3 | 4.00 | 16 |
Welded gabion screen advantage:
• Cost effective & environmentally friendly alternative to concrete system.
• Simple & speedy installation, using natural or quarried stones obtained locally.
• Ability to deform without cracking allowing the structure to withstand any unpredictable.
movement or settlement without loss or stability.
• Higher resistance to natural forces due to better tensile strength.
|
|
