Woven Gabion Mesh Basket 2m X 1m X 1m Standard Size Galvanized Hexagonal

Products

Concrete Reinforcement Welded Wire Mesh

Galvanized Serrated Bar Grating

Temporary Construction Fence Panel

Woven Gabion Mesh Basket 2m X 1m X 1m Standard Size Galvanized Hexagonal

Name: Woven Gabion Mesh Basket 2m X 1m X 1m Standard Size Galvanized Hexagonal
Brand: HBGB
SKU: GB-002
Price: 1.00 USD
Availability: InStock
Rating: 5 (167 reviews)

MOQ:	100PCS
Price:	negotiable
Standard Packaging:	compacted before packaging, in bundle
Delivery Period:	10-25days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	1000 pcs per day

Detail Information

Product Description

Detail Information

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-002

Place Of Origin:

Hebei, China

Product Name:

Gabion Mesh Basket

Material:

Iron Wire Q195

Surface Treatment:

Galvanized, Pvc Coated, Galfan

Gabion Basket Color:

Silver, Green ,Grey, Etc

Net Wire:

2 - 4 Mm

Lacing Wire Diameter:

2.0mm, 2.2mm, Etc

SSelvedge Wire::

3.4mm, 3.8mm, Etc

Mesh Size:

60 X 80 Mm; 80 X 100 Mm;100 X 120 Mm;

Basket Size:

1*1*1m,2*1*1m,3*1*1m4*2*0.3m, 6*2*0.3m,etc

Minimum Order Quantity:

100PCS

Price:

negotiable

Packaging Details:

compacted before packaging, in bundle

Delivery Time:

10-25days

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

1000 pcs per day

High Light:

galvanized woven gabion mesh basket

2m x 1m x 1m gabion mesh basket

hexagonal 2m gabion basket

Product Description

2m X 1m X 1m Standard Size Galvanized Hexagonal Gabion Mesh Basket

Gabion Mesh Basket Description:

Hexagonal woven gabion mesh basket is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanising process using a zinc/aluminium/mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.

Woven Gabion Mesh Basket 2m X 1m X 1m Standard Size Galvanized Hexagonal 0

Gabion mesh basket specifications:

Gabion box common specification
Gabion box (mesh size): 80100mm 100120mm	Mesh wire Dia.	2.7mm	zinc coating:60g,245g, ≥270g/m2
	Edge wire Dia.	3.4mm	zinc coating:60g,245g, ≥270g/m2
	Tie wire Dia.	2.2mm	zinc coating:60g,≥220g/m2
Gabion mattress(mesh size): 60*80mm	Mesh wire Dia.	2.2mm	zinc coating:60g, ≥220g/m2
	Edge wire Dia.	2.7mm	zinc coating:60g,245g, ≥270g/m2
	Tie wire Dia.	2.2mm	zinc coating:60g, ≥220g/m2
special sizes Gabion are available	Mesh wire Dia.	2.0~4.0mm	superior quality,competitive price and considerate service
	Edge wire Dia.	2.7~4.0mm
	Tie wire Dia.	2.0~2.2mm

Gabion Mesh Basket Features:

• Uniform wire coating for extra durability

• Flexible & permeable structure

• Tolerates differential settlement

• Easy to install

• No special labour is required for installation

Gabion Mesh Basket Usage:

• Control and guide of water or flood. Flood bank or guiding bank

• Preventing of rock breaking.Water and soil protection

• Bridge protection.Strengthening structure of soil

• Protection engineering of seaside area.Seaport engineering

• Isolation walls.Protection of road

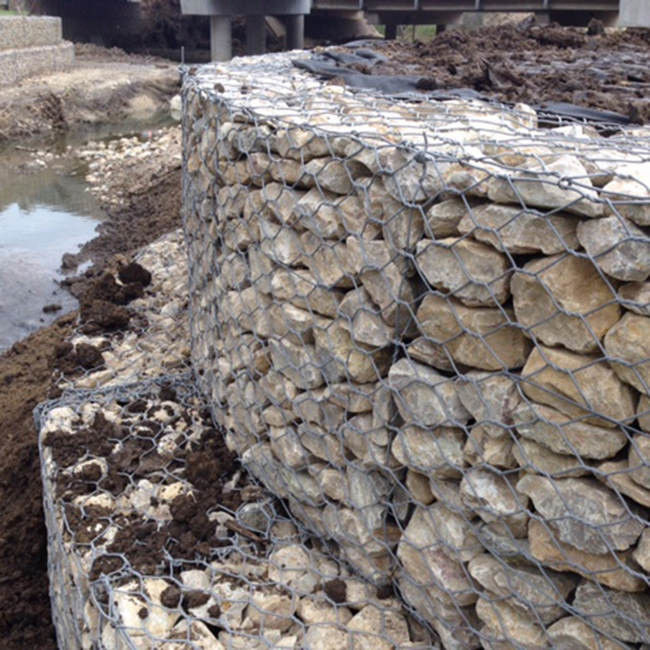

Woven Gabion Mesh Basket 2m X 1m X 1m Standard Size Galvanized Hexagonal 1

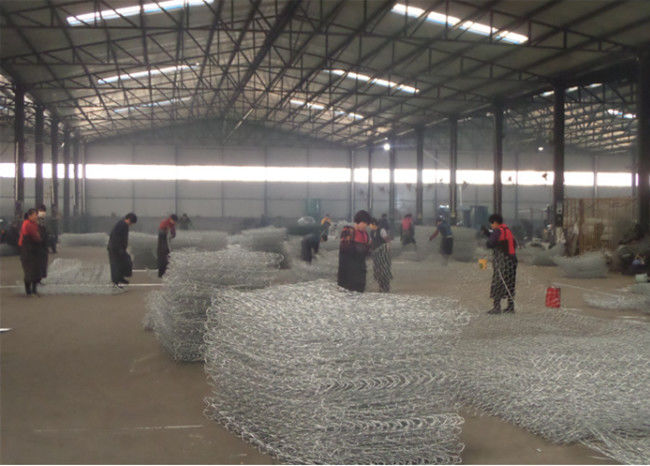

Process of production:

Woven Gabion Mesh Basket 2m X 1m X 1m Standard Size Galvanized Hexagonal 2

Application:

Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Stengthening structure of soil

Protection engineering of seaside area

Woven Gabion Mesh Basket 2m X 1m X 1m Standard Size Galvanized Hexagonal 3
