| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

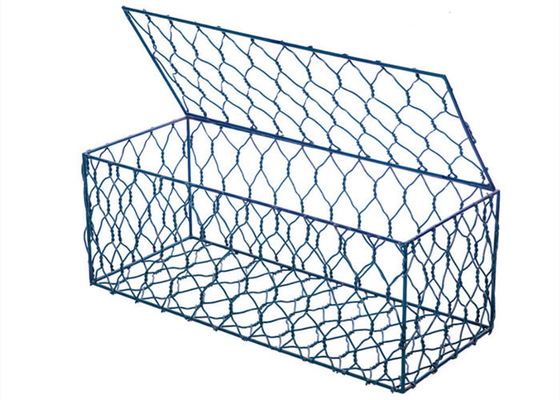

Gabion Mesh Basket is also called heavy hexagonal wire netting. It is made from high grade Carbon steel iron wire, heavy zinc coated wire, PVC coated wire through twisting and braiding by machine, It is mainly used in supporting and protecting side slope and basis pit,mountain rock hanging mesh, green guard rail netting on side slope, railway guard netting. Heavy Hexagonal wire netting also can be worked into stone cage or stone cage cushion, and used in reservoir , river or dyke for closure.
|
Height
|
customized
|
|
Width
|
1.0m or customized
|
|
Wire diameter
|
2.0mm-4.0mm
|
|
Mesh
|
60*80mm,80*100mm,80*120mm,100*120mm,120*150mm,90*110mm
|
|
Surface treatment
|
1. Electrogalvanized 2. Hot dip galvanized 3. Galvan (zinc aluminum alloy) 4. PVC coating
|
Gabion Mesh Basket is used for river bank and scour protection, bridge and weir protection, channel linings and erosion control. It is also widely used for the embankment stability.
The woven gabion mattress can be used in the differential settlement applications and the welded gabion mattress can be used in the landscape constructions.
| Aperture | 8x10 cm | 9x11 cm |
| Mesh Wire diameter | 2.7mm | 2.7mm |
| Selvedge wire | 3.4mm | 3.4mm |
| Lacing wire | 2.2mm | 2.2mm |
| Material | Hot Galvanized wire | Hot Galvanized wire |
| Common size | 2m x 1m x 1m | 2m x 1m x 1m |
| Weight | 16.7kg/set | 16.0kg/set |
| Packing&loading | 100sets/bundle ,1200sets/20ft container ,1500sets/40HC | |
| Feature | Strong structure and corrosion-resistance to protect the dam and riverbank | |
|
|
