| MOQ: | 50 PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

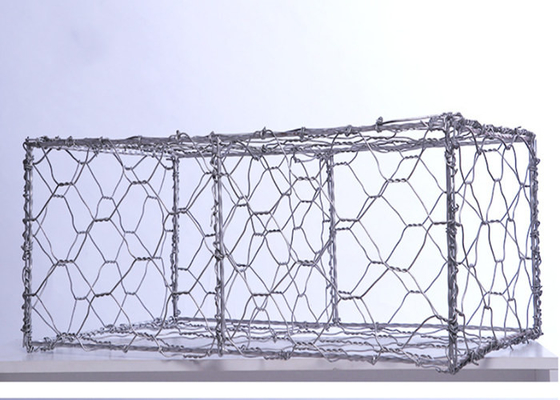

Gabion Mesh is also called Product Name: Gabion Box,Gabion Basket, Stone Cage, , Hexagonal Wire Mesh, Gabion Mesh, PVC Coated Gabion Box, Galfan Gabion Basket, Stone Gabion, Gabion Cage, Gabion Retaining Wall.
Gabion baskets are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The gabion baskets are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection
Gabion box materials: Hot dipped galvanized wire and PVC coated galvanized wire, Galfan coated wire
Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.05mm, etc
Gabion box selvedge wire: 2.4mm, 2.7mm, 3.4mm, 3.8mm, etc
Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, etc
Gabion box lacing wire: 2.2mm, 5% of gabion weight
Gabion box zinc coating: 225, 245, 275g/m2, according to EN10224-2
Gabion box size: 1*1*1m, 2*1*0.5m, 2*1*1m, 3*1*1m, 4*2*0.3m, 6*2*0.3m,etc
Gabion box steel according to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2
Gabion Mesh Basket Usages:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Stengthening structure of soil
Protection engineering of seaside area
Gabion Mesh Basket Specifications:
|
Mesh size and wire thickness
|
|||
|
Gabion Boxes
80x100mm
100x120mm
|
Mesh Wire Dia.
|
2.70mm
|
Zinc coating: >260g/m2
|
|
Edge Wire Dia.
|
3.40mm
|
Zinc coating: >275g/m2
|
|
|
Tie Wire Dia.
|
2.20mm
|
Zinc coating: >240g/m2
|
|
|
Mattress
60x80mm |
Mesh Wire Dia.
|
2.20mm
|
Zinc coating: >240g/m2
|
|
Edge Wire Dia.
|
2.70mm
|
Zinc coating: >260g/m2
|
|
|
Tie Wire Dia.
|
2.20mm
|
Zinc coating: >240g/m2
|
|
|
Special sizes are available.
|
Mesh Wire Dia.
|
2.00~4.00mm
|
|
|
Edge Wire Dia.
|
2.70~4.00mm
|
||
|
Tie Wire Dia.
|
2.00~2.20mm
|
||
|
Normal box size (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
|
1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 |
0.50 |
|
1.0x1.0x1.0 |
0 |
1.00 |
|
|
1.5x1.0x0.5 |
0 |
0.75 |
|
|
1.5x1.0x1.0 |
0 |
1.50 |
|
|
2.0x1.0x0.5 |
1 |
1.00 |
|
|
2.0x1.0x1.0 |
1 |
2.00 |
|
|
3.0x1.0x0.5 |
2 |
1.50 |
|
|
3.0x1.0x1.0 |
2 |
3.00 |
|
|
4.0x1.0x0.5 |
3 |
2.00 |
|
|
4.0x1.0x1.0 |
3 |
4.00 |
Application:
1.60-80 sets/bundle, binding with steel strips or stands
2.60-80 sets /bundle, the use pallet
3.Some sizes in rolls
4.According to customers' requirement
|
|
