| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
A gabion (from Italian gabbione meaning "big cage"; from Italian gabbia and Latin cavea meaning "cage") is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, and military applications.
Material: Hot-dipped galvanized wire, Zn-5%-Al wire, Hot-dipped galvanized wire with PVC coated, Zn-10%-Al wire.
Weaving method: it is assembled with cover pieces; side pieces and bottom pieces are produced separately and then assembled to a basket with lacing wire or hog rings. It is common practice to choose a thicker wire to make selvedge wire, which can increase the strength of the basket.
| Decription | Gabion Box & Gabions & Rock Gabions |
| Wire Diameter | 2.0 mm - 4.0 mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 90*110mm |
| Box Size | 1m*1m*1m, 2m*1m*1m, 3m*1m*1m, 4m*1m*1m |
| Surface Treatment | PVC coated, electro or hot dipped galvanized |
| Payment Terms | T/T |
|
Length
(m) |
Width
(m) |
Height
(m) |
Diaphragm
|
Volume
(m3) |
Tolerance
|
|
2.0
|
1.0
|
0.3
|
1
|
0.6
|
L:+/-3%
W:+/-5%
H:+/-5%
|
|
3.0
|
1.0
|
0.3
|
2
|
0.9
|
|
|
4.0
|
1.0
|
0.3
|
3
|
1.2
|
|
|
2.0
|
1.0
|
0.5
|
1
|
1.0
|
|
|
3.0
|
1.0
|
0.5
|
2
|
1.5
|
|
|
4.0
|
1.0
|
0.5
|
3
|
2.0
|
|
|
1.0
|
1.0
|
0.5
|
0
|
0.5
|
|
|
1.0
|
1.0
|
1.0
|
0
|
1.0
|
|
|
2.0
|
1.0
|
1.0
|
1
|
2.0
|
|
|
3.0
|
1.0
|
1.0
|
2
|
3.0
|
|
|
4.0
|
1.0
|
1.0
|
3
|
4.0
|
On the hexagonal double-twisted wire mesh, size of opening should not exceed +/-5% on the nominal dimension
Application:

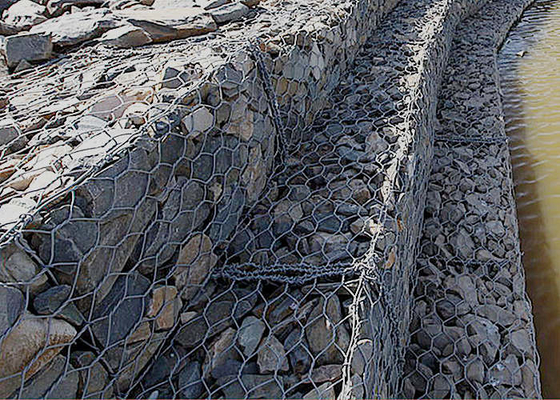

Retaining wall structures; Prevention of current scour and erosion control; Bridge protection; Hydraulic structures, dams and culverts; Embankment protection; Rockfall prevention and soil erosion protection.
|
|
